กว้านสลิงติดรถยนต์ DC OFF-ROAD WINCH ยี่ห้อ DUKE รุ่น DW Series
DC OFF-ROAD WINCH DW-10000i
- Model No.:DW-10000i
- Certification:TUV ,ISO 9001 ,CE ,EMC
- Made in:Taiwan, ROC
Getting out of Trouble
Spec
- Height(cm) :43
- Weight(kg) :45
- Length(cm) :73
- Width(cm) :29
- machine size :62.1cmX26.6cmX26.4cm
Key Features
DC OFF ROAD WINCH
Model：DW-10000i
Usage：
At The Rainforest Challenge,Stuck On Rotting Bridges-Even
Rolled Over In Mud. Yet They Kept Moving Quickly.
By Economizing Every Movement, They Maximized Winching Efficiency.
DUKE Winch Let Them Power Out Line As Fast As Free Spooling And Once Set, Pull Fast Via Legendary Line Speed.
DUKE Winch Never Let Obstacles,Slow The Down.
| MODEL |
DUKE DW-10000 i |
| LINE PULL(KG) |
4540KG |
| SPEED(M/min) |
4 |
| Motor(HP) |
4.6 |
| POWER(DC V) |
12V OR 24V |
| WIRE ROPE (mm x M) |
8×30 |
- RATED LINE PULL:10000 LBS.(4540 KGS.) SINGLE-LINE
- MOTOR:12V 4.6HP,24V2.6HP,SERIES WOUND
- REMOTE CONTROL:REMOTE SWITCH,16´(5M)LEAD
- GEARTRAIN:4-STAGE PLANETARY
- GEAR RATIO:265:1
- CLUTCH(FREESPOOLING):SLIDING RING GEAR
- BRAKE:AUTOMATIC DIRECT DRIVE BRAKE
- DRUM DIAMETER/LENGTH: 2.5”/9.0”(6.4CM/23CM)
- WEIGHT:81.5LBS.(37KGS.)
- WIRE ROPE:99”,5/16”DIAMETER(30M.8mmDIAMETER)
- FAIRLEAD:4-WAY ROLLER
- The solenoid electric wiring box of DW-12000i/DW-10000i/DW-9500i/DW-9000i/DW-8000i/DW-6000i.
- Is located at central upper of winch and suitable for install it outside car bumper.(it is a open type)
Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan. We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”. Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.
Products range are :
- AC power:
Electric mini chain hoist
Electric mini wire winch
Electric wire winch
Electric chain hoist
Electric all-purpose wire winch.
- DC power:
OFF-ROAD winch.
DC OFF-ROAD WINCH DW-12000i
- Model No.:DW-12000i
- Certification:TUV ,EMC ,ISO 9001 ,CE
- Made in:Taiwan, ROC
Getting out of Trouble
Spec
- Height(cm) :43
- Weight(kg) :45
- Length(cm) :73
- Width(cm) :29
- machine size :62.1cmX26.6cmX26.4cm
Key Features
DC OFF ROAD WINCH
Model：DW-12000i
Usage:
At The Rainforest Challenge,Stuck On Rotting Bridges-Even
Rolled Over In Mud. Yet They Kept Moving Quickly.
By Economizing Every Movement, They Maximized Winching Efficiency.
DUKE Winch Let Them Power Out Line As Fast As Free Spooling And Once Set, Pull Fast Via Legendary Line Speed.
DUKE Winch Never Let Obstacles,Slow The Down.
| MODEL |
DUKE DW-12000 i |
| LINE PULL(KG) |
5440KG |
| SPEED(M/min) |
4 |
| Motor(HP) |
4.6 |
| POWER(DC V) |
12V OR 24V |
| WIRE ROPE (mm x M) |
10×28 |
- RATED LINE PULL:12000 LBS.(5440 KGS.) SINGLE-LINE
- MOTOR:12V 4.6HP,24V3.6HP,SERIES WOUND
- REMOTE CONTROL:REMOTE SWITCH,16´(5M)LEAD
- GEARTRAIN:4-STAGE PLANETARY
- GEAR RATIO:265:1
- CLUTCH(FREESPOOLING):SLIDING RING GEAR
- BRAKE:AUTOMATIC DIRECT DRIVE BRAKE
- DRUM DIAMETER/LENGTH: 2.5”/9.0”(6.4CM/23CM)
- WEIGHT:84LBS.(38KGS.)
- WIRE ROPE:92”,13/32”DIAMETER(28M.10mmDIAMETER)
- FAIRLEAD:4-WAY ROLLER
- The solenoid electric wiring box of DW-12000i/DW-10000i/DW-9500i/DW-9000i/DW-8000i/DW-6000i.
- Is located at central upper of winch and suitable for install it outside car bumper.(it is a open type)
Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan. We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”. Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.
Products range are :
- AC power:
Electric mini chain hoist
Electric mini wire winch
Electric wire winch
Electric chain hoist
Electric all-purpose wire winch.
- DC power:
OFF-ROAD winch.
DC OFF-ROAD WINCH DW-6000i
- Model No.:DW-6000i
- Certification:TUV ,CE ,EMC ,ISO 9001
- Made in:Taiwan, ROC
Getting out of Trouble
Spec
- Height(cm) :43
- Weight(kg) :45
- Length(cm) :73
- Width(cm) :29
Key Features
DC winch manufacturers offer a wide selection of top-tier products.
DC OFF ROAD WINCH
Model：DW-6000i
Usage：
At The Rainforest Challenge,Stuck On Rotting Bridges-Even
Rolled Over In Mud. Yet They Kept Moving Quickly.
By Economizing Every Movement, They Maximized Winching Efficiency.
DUKE Winch Let Them Power Out Line As Fast As Free Spooling And Once Set, Pull Fast Via Legendary Line Speed.
DUKE Winch Never Let Obstacles,Slow The Down.
| MODEL |
DUKE DW-6000i |
| LINE PULL(KG) |
2720KG |
| SPEED(M/min) |
6 |
| Motor(HP) |
3.6 |
| POWER(DC V) |
12V OR 24V |
| WIRE ROPE (mm x M) |
8×30 |
- RATED LINE PULL:6000 LBS.(2720 KGS.) SINGLE-LINE
- MOTOR:12V3.6HP,24V2.6HP,SERIES WOUND
- REMOTE CONTROL:REMOTE SWITCH,16´(5M)LEAD
- GEARTRAIN:3-STAGE PLANETARY
- GEAR RATIO:156:1
- CLUTCH(FREESPOOLING):SLIDING RING GEAR
- BRAKE:AUTOMATIC DIRECT DRIVE BRAKE
- DRUM DIAMETER/LENGTH: 2.5”/9.0”(6.4CM/23CM)
- WEIGHT:77LBS.(35KGS.)
- WIRE ROPE:99”,5/16”DIAMETER(30M.8mmDIAMETER)
- FAIRLEAD:4-WAY ROLLER
- The solenoid electric wiring box of DW-12000i/DW-10000i/DW-9500i/DW-9000i/DW-8000i/DW-6000i.
- Is located at central upper of winch and suitable for install it outside car bumper.(it is a open type)
Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan. We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”. Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.
Products range are :
- AC power:
Electric mini chain hoist
Electric mini wire winch
Electric wire winch
Electric chain hoist
Electric all-purpose wire winch.
- DC power:
OFF-ROAD winch.
DC OFF-ROAD WINCH DW-8000i
- Model No.: DW-8000i
- Certification : EMC ,ISO 9001 ,TUV ,CE
- Made in : Taiwan, ROC
Getting out of Trouble
Spec
- Height(cm) :43
- Weight(kg) :45
- Length(cm) :79
- Width(cm) :29
- machine size :54.7cmX26.6cmX26.4cm
Key Features
Top-notch DC winch manufacturers in Taiwan.
DC OFF ROAD WINCH
Model：DW-8000i
Usage：
At The Rainforest Challenge,Stuck On Rotting Bridges-Even
Rolled Over In Mud. Yet They Kept Moving Quickly.
By Economizing Every Movement, They Maximized Winching Efficiency.
DUKE Winch Let Them Power Out Line As Fast As Free Spooling And Once Set, Pull Fast Via Legendary Line Speed.
DUKE Winch Never Let Obstacles,Slow The Down.
| MODEL |
DUKE DW-8000i |
| LINE PULL(KG) |
3630KG |
| SPEED(M/min) |
6 |
| Motor(HP) |
4.6 |
| POWER(DC V) |
12V OR 24V |
| WIRE ROPE (mm x M) |
8×30 |
- RATED LINE PULL:8000 LBS.(3630 KGS.) SINGLE-LINE
- MOTOR:12V 4.6HP,24V2.6HP,SERIES WOUND
- REMOTE CONTROL:REMOTE SWITCH,16´(5M)LEAD
- GEARTRAIN:3-STAGE PLANETARY
- GEAR RATIO:156:1
- CLUTCH(FREESPOOLING):SLIDING RING GEAR
- BRAKE:AUTOMATIC DIRECT DRIVE BRAKE
- DRUM DIAMETER/LENGTH: 2.5”/9.0”(6.4CM/23CM)
- WEIGHT:80LBS.(36KGS.)
- WIRE ROPE:99”,5/16”DIAMETER(30M.8mmDIAMETER)
- FAIRLEAD:4-WAY ROLLER
- The solenoid electric wiring box of DW-12000i/DW-10000i/DW-9500i/DW-9000i/DW-8000i/DW-6000i.
- Is located at central upper of winch and suitable for install it outside car bumper.(it is a open type)
Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan. We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”. Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.
Products range are :
- AC power:
Electric mini chain hoist
Electric mini wire winch
Electric wire winch
Electric chain hoist
Electric all-purpose wire winch.
- DC power:
OFF-ROAD winch.
DC OFF-ROAD WINCH DW-9000i
- Model No.:DW-9000i
- Certification:EMC ,TUV ,CE ,ISO 9001
- Made in:Taiwan, ROC
Getting out of Trouble
Spec
- machine size :68.4cmX42.9cmX30.5cm
Key Features
DC OFF ROAD WINCH
Model：DW-9000i
Usage：
At The Rainforest Challenge,Stuck On Rotting Bridges-Even
Rolled Over In Mud. Yet They Kept Moving Quickly.
By Economizing Every Movement, They Maximized Winching Efficiency.
DUKE Winch Let Them Power Out Line As Fast As Free Spooling And Once Set, Pull Fast Via Legendary Line Speed.
DUKE Winch Never Let Obstacles,Slow The Down.
| MODEL |
DUKE DW-9000i |
| LINE PULL(KG) |
4080KG |
| SPEED(M/min) |
6 |
| Motor(HP) |
4.6 |
| POWER(DC V) |
12V OR 24V |
| WIRE ROPE (mm x M) |
8×30 |
- RATED LINE PULL:9000 LBS.(4080 KGS.) SINGLE-LINE
- MOTOR:12V 4.6HP,24V2.6HP,SERIES WOUND
- REMOTE CONTROL:REMOTE SWITCH,16´(5M)LEAD
- GEARTRAIN:3-STAGE PLANETARY
- GEAR RATIO:156:1
- CLUTCH(FREESPOOLING):SLIDING RING GEAR
- BRAKE:AUTOMATIC DIRECT DRIVE BRAKE
- DRUM DIAMETER/LENGTH: 2.5”/9.0”(6.4CM/23CM)
- WEIGHT:80LBS.(36KGS.)
- WIRE ROPE:99”,5/16”DIAMETER(30M.8mmDIAMETER)
- FAIRLEAD:4-WAY ROLLER
- The solenoid electric wiring box of DW-12000i/DW-10000i/DW-9500i/DW-9000i/DW-8000i/DW-6000i.
- Is located at central upper of winch and suitable for install it outside car bumper.(it is a open type)
Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan. We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”. Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.
Products range are :
- AC power:
Electric mini chain hoist
Electric mini wire winch
Electric wire winch
Electric chain hoist
Electric all-purpose wire winch.
- DC power:
OFF-ROAD winch.

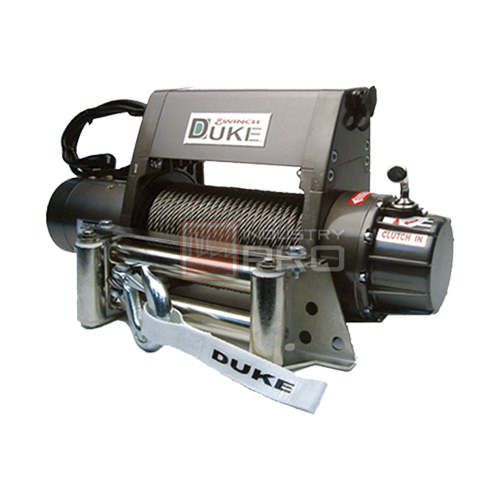

DC OFF-ROAD WINCH DW-9500i
- Model No.:DW-9500i
- Certification:CE ,EMC ,ISO 9001 ,TUV
- Made in:Taiwan, ROC
Getting out of Trouble
Spec
- Height(cm) :43
- Weight(kg) :45
- Length(cm) :73
- Width(cm) :29
Key Features
Leading DC winch manufacturers.
DC OFF ROAD WINCH
Model：DW-9500i
Usage：
At The Rainforest Challenge,Stuck On Rotting Bridges-Even
Rolled Over In Mud. Yet They Kept Moving Quickly.
By Economizing Every Movement, They Maximized Winching Efficiency.
DUKE Winch Let Them Power Out Line As Fast As Free Spooling And Once Set, Pull Fast Via Legendary Line Speed.
DUKE Winch Never Let Obstacles,Slow The Down.
| MODEL |
DUKE DW-9500i |
| LINE PULL(KG) |
4309KG |
| SPEED(M/min) |
6 |
| Motor(HP) |
4.6 |
| POWER(DC V) |
12V OR 24V |
| WIRE ROPE (mm x M) |
8×30 |
- RATED LINE PULL:9500 LBS.(4309 KGS.) SINGLE-LINE
- MOTOR:12V 4.6HP,24V2.6HP,SERIES WOUND
- REMOTE CONTROL:REMOTE SWITCH,16´(5M)LEAD
- GEARTRAIN:3-STAGE PLANETARY
- GEAR RATIO:166:1
- CLUTCH(FREESPOOLING):SLIDING RING GEAR
- BRAKE:AUTOMATIC DIRECT DRIVE BRAKE
- DRUM DIAMETER/LENGTH: 2.5”/9.0”(6.4CM/23CM)
- WEIGHT:80LBS.(36KGS.)
- WIRE ROPE:99”,5/16”DIAMETER(30M.8mmDIAMETER)
- FAIRLEAD:4-WAY ROLLER
- The solenoid electric wiring box of DW-12000i/DW-10000i/DW-9500i/DW-9000i/DW-8000i/DW-6000i.
- Is located at central upper of winch and suitable for install it outside car bumper.(it is a open type)
Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan. We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”. Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.
Products range are :
- AC power:
Electric mini chain hoist
Electric mini wire winch
Electric wire winch
Electric chain hoist
Electric all-purpose wire winch.
- DC power:
OFF-ROAD winch.
