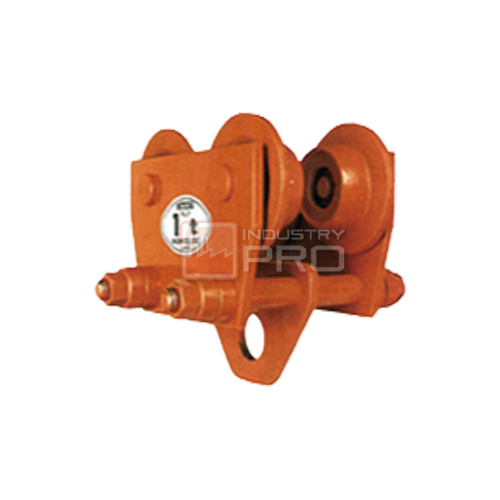

Trolley NICHI PT-5

ขาแขวนรอก Trolley NICHI รุ่น PT-5

Category ขาแขวนรอก Tags Hoist & Crane, NICHI, Trolley, ขาแขวนรอก, รอกและระบบลำเลียง

ขาแขวนรอก Trolley NICHI PT-5

FEATURES

Besides its use lowering the chain hoist, the PT-5 can be used as a stand-alone trolley. The plain trolley can be easily pushed along the rails by hand.
Smooth running
The wheel for each load uses ball bearings that reduce running resistance and ensure freedom from maintenance.

Trolley width can be adjusted to one of three different sizes by changing the collar.
The wheels are made so that they can run along either I-beams or H-beams.

SPECIFICATIONS for PT-5 Plain Trolley

Item no.	Rated load (t)	Trolley rail (I-beam) (mm)	Min. Curve radius (mm)	Test load (t)	External dimensions (mm)
					K	L	M	R	S	U
PT5005	0.5	125×75×5.5×9.5	800	0.75	195	23-t2	b-43	94-t2	32	72+t2
		180×100×6×10
		250×125×7.5×12.5
PT5010	1	150×75×5.5×9.5	1,000	1.5	206	25-t2	b-42	99-t2	35	78+t2
		180×100×6×10
PT5015	1.6	250×125×7.5×12.5	1,100	2.4	221	32-t2	b-41	108-t2	40	85+t2
PT5020	2	200×100×7×10	1,200	3	262	31-t2	b-63	130-t2	45	102+t2
		250×125×7.5×12.5
		300×150×8×13
PT5030	3.2	200×100×7×10	1,500	4.8	306	32-t2			56	126+t2
		250×125×10×19
		300×150×11.5×22
PT5050	5	250×125×10×19		7.5	329	37-t2	b-76	152-t2	65	132+t2
		300×150×11.5×22
		450×175×11×20

Item no.	Rated load (t)	Net weight (kg)	External dimensions (mm)
Item no.	Rated load (t)	Net weight (kg)	H	I
PT5005	0.5	6	93	105
PT5010	1	8	95	103
PT5015	1.6	11	112	112
PT5020	2	17	128	128
PT5030	3.2	26	133	133
PT5050	5	45	166	166

Note: Specifications are subject to change for improvements without notice.
