| ITEM | Description | |
| Limits | Liquid Temp. | 0~40 °c |
| Of Use | Applications | Dewatering Fluid Contains Solid Sediment |
| Submersion Depth | 30m | |
| Type | Frequency | 50 Hz • 60 Hz |
| Motor | 4P • Dry Motor | |
| Insulation | Class F | |
| Protection | IP 68 | |
| Protector | Auto-cut (AFG-615 : MTS) | |
| Bearing | Ball Type | |
| M.seal | Doble M.seal | |
| Impeller | Enclosed-channel | |
| Material | Upper Cover | FC-200 |
| Motor Frame | FC-200 | |
| Main Shaft | SUS420J2 | |
| Impeller | FC-200 + Heat Treatment | |
| M.seal | Upper : Carbon/ceramic | |
| lower : Silicon/Silicon | ||
| Casing | FC-200 | |
| Agitator | FCD-700 + Heat Treatment | |
| Wear Ring | AFG-610/615 : Chrome Steel | |
| Casing Cover | AFG-55/75 : FC-200 + Heat Treatment | |
| AFG-610/615 : FC-200 | ||
| Cable | VCT or H07RN-F or SOW | |
| (10HP/230V:SJOW) | ||
| Optional | Pump can be customized to fit specifications | |
| Model | Power HP (kW) | Discharge inch (mm) | Pole | Motor | Standard | Weight kg | Solid Passage mm | ||
| Phase Ø | Star Method | M | m3/min | ||||||

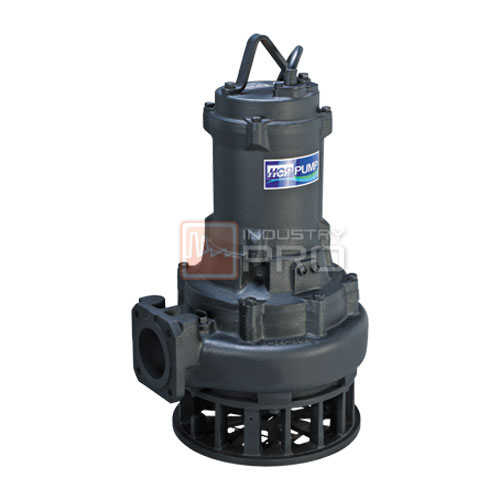

| HCP AFG-55 | 7½ (5.5) | 4″ (100) | 4 | 3 | Direct | 15 | 1 | 149 | 26 |
| HCP AFG-75 | 10 (7.5) | 4″ (100) | 4 | 3 | Direct | 18 | 1 | 163 | 26 |
| HCP AFG-610 | 10 (7.5) | 6″ (150) | 4 | 3 | Direct | 10.5 | 2.5 | 222 | 54 |
| HCP AFG-615 | 15 (11) | 6″ (150) | 4 | 3 | Y-r | 14.5 | 2.5 | 262 | 54 |
