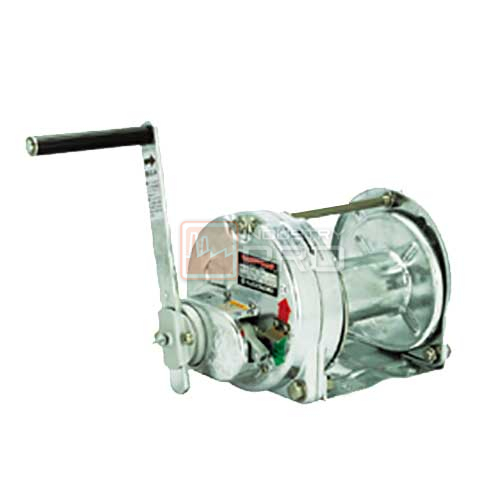

กว้านสลิงมือหมุนเหล็กกัลวาไนซ์ MAXPULL รุ่น GM-GS Series รุ่นแบบที่กันสนิม สินค้าคุณภาพนำเข้าจากประเทศญี่ปุ่น มือจับสามารถหมุนได้ 360 องศา พร้อมติดตั้งระบบเบรกกลแบบอัตโนมัติ สามารถยกของที่มีน้ำหนักสูงสุดตั้งแต่ 0.1 – 3 ตัน
| Model | Wire Rope Tension | Drum Capacity | Winding Layer Number of Wire Rope | Gear Ration | Weight |
| (Body + Handle) | |||||
| MAXPULL GM – 1 – GS – SI | 100 kg (220lbs) 4th Layer or Less |
6-Layers Winding | 1st Layer 1:1 r : 14.6kg (32.2lbs) | 1:01 | 7.2kg (15.9lbs) |
| ø 5 mm (6×19) x 35 m | 3rd Layer : 19.0kg(41.9lbs) | ||||
| (3/16 inch (7×19) x 114ft) | 4th Layer :21.2kg(46.7lbs) | ||||
| MAXPULL GM – 3 – GS – SI | 300 kg (660lbs) 5th Layer or Less |
6-Layers Winding | 1st Layer 1:1 7.7kg (17.0lbs) | 6.25 : 1 | 14.1kg (31.1lbs) |
| ø 6 mm (6×37) x 32 m | 3 rd Layer : 10.5kg (23.1lbs) | ||||
| (1/4 inch (6×36) x 104ft) | 5th Layer :13.3ka (29.3lbs) | ||||
| MAXPULL GM – 5 – GS – SI | 500 kg (1,100lbs) 5th Layer or Less |
6-Layers Winding | 1st Layer : 11.1 kg ( 24.5lbs ) | 8.9 : 1 | 15.4kg (34.0lbs) |
| ø 6 mm (6×37) x 40m | 3 rd Layer : 14.4kg (23.1lbs) | ||||
| (1/4 inch (6×36) x 131 ft) | 5th Layer :17.7kg (39.0lbs) | ||||
| MAXPULL GM – 10 – GS – SI | 1,000 kg (2,200lbs) 3th Layer or Less |
5-Layers Winding | 1st Layer : 13.5 kg ( 29.8lbs ) | 12.6 : 1 | 16.4kg (36.2lbs) |
| ø 8 mm (6×37) x 35m | 3nd Layer : 16.0kg (35.3lbs) | ||||
| (5/16 inch (6×36) x 114 ft) | 3rd Layer :18.5g (40.8lbs) | ||||
| MAXPULL GM – 20 – GS – SI | Normal Winding: 400 kg ( 880 lbs) 3th Layer Quick Winding: 2,000 kg 4,400 lbs) or Less |
5-Layers Winding | 1st Layer : 16.0kg ( 35.3lbs ) | Quick 4 : 1 Winding Normal 20 : 1 Winding |
28.2kg (62.2lbs) |
| ø 9 mm (6×37) x 38m | 2nd Layer : 18.9kg (41.7lbs) | ||||
| (3/8 inch (6×36) x 124 ft) | 3rd Layer :21.8g (48.1lbs) | ||||
| MAXPULL GM – 10 – GS – SI | 3,000 kg(6,600lbs) 3th Layer or Less |
4-Layers Winding | 1st Layer : 13.9kg ( 30.6lbs ) | 35.5 : 1 | 37.7kg (83.1lbs) |
| ø12 mm (6×37) x 35m | 2rd Layer : 17.2kg (37.9lbs) | ||||
| (7/16 inch (6×36) x 114 ft) | 3th Layer :20.5g (45.2lbs) | ||||
| Handle Force Handle Length (Effective Max.) 250 mm (9.84inch) | |||||
