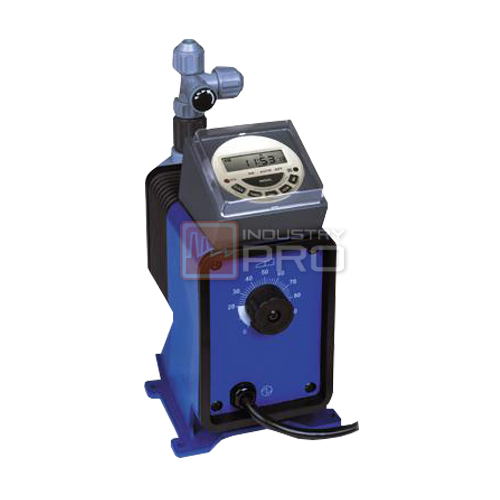

The Pulsation Series T7 was designed to feed chemical products on a timed schedule. Typical applications include the feed of biocides in open-air cooling towers.
The feed cycle is initiated and controlled by the programmable timer. The Series T7 provides everything you need in one unique, compact package to create a simple and cost effective metering system for timed applications. A 7-day programmable timer controls the Series T7. The timer is programmable in 1-minute increments with up to 8 on/off cycles per day. Each timed event can be set to run any day of the week on a 7-day cycle. Other control features include a standby mode, continuous ‘ON’ mode and the ability to adjust the stroke length from 0 to 100%. Four distinct models are available, having pressure capabilities to 100 psi (7.0 bar) @ 12 gpd (1.9 lph), and flow capabilities to 48 gpd (7.6 lph) @ 50 psi (3.3 bar), with a turndown ratio of 10:1. Metering performance is reproducible to within ± 3% of maximum capacity.
| Pump Head Materials | GFPPL, PVC, PVDF, 316 SS |
| Fitting Material Available | GFPPL, PVC, PVDF |
| Bleed Valve | Same as fitting and check valve selected (except 316SS) |
| Turndown Ratio | 10:1 |
| Seat O-Rings Available | PTFE, CSPE, Viton |
| Balls Available | Ceramic, PTFE, 316 SS, Alloy C |
| Diaphragms | PTFE-faced CSPE-backed |
| Tubing Available | Clear PVC, White PE, PVDF |
| Power Input | 115 VAC – 50/60 HZ -1 ph, 230 VAC – 50/60 HZ |
| Peak Input Power | 300 Watts, Average Input Power at Max SPM: 130 Watts |
| Average Current Draw | 115 VAC: Amps – 1.0, 230 VAC: Amps – 0.5 |
| Accessories | Dampeners |
| Gauges | |
| KOP Kits | |
| Pre-Engineered Systems | |
| Process Controllers | |
| Tanks |
