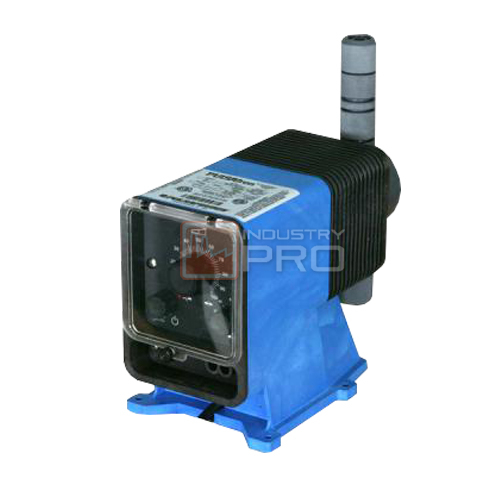

The Pulsation Series HV designed for high viscosity applications for precise and accurate metering control. The Series HV offers manual control over stroke length and stroke rate as standard with the option to choose between 4-20mA and external pace inputs for automatic control. Five distinct models are available, having pressure capabilities to 150 psi (10 bar) @ 12 gpd (1.9 lph), and flow capacities to 240 gpd (37.9 lph) @ 80 psi (5.6 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within ± 2% of maximum capacity.
| Pump Head Materials | GFPPL, PVC |
| Fitting Material Available | GFPPL, PVC |
| Turndown Ratio | 100:1 |
| Seat O-Rings Available | PTFE, CSPE, Viton |
| Balls Available | PTFE, 316 SS |
| Diaphragms | PTFE-faced CSPE-backed |
| Tubing Available | Clear PVC, White PE, PVDF |
| Power Input | 115 VAC – 50/60 HZ -1 ph, 230 VAC – 50/60 HZ – 1 ph |
| Peak Input Power | 300 Watts, Average Input Power At Max SPM: 130 Watts |
| Average Current Draw | 115 VAC: Amps – 1.0, 230 VAC: Amps – 0.5 |
| Accessories | Dampeners |
| Gauges | |
| KOP Kits | |
| Pre-Engineered Systems | |
| Process Controllers | |
| Tanks |
