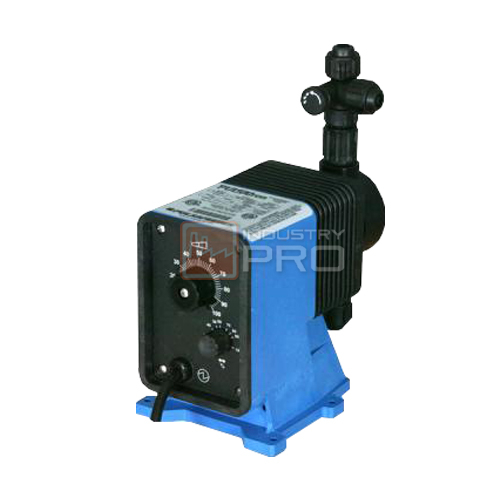

The PULSAtron Series A Plus offers manual function controls of stroke length and stroke rate as standard, with the option to select external pace for automatic control. Other optional features include external stop function and 1000:1 turndown control. Ten distinct models are available, having pressure capabilities to 250 psig (17 bar), and flow capacities to 58 gpd (9.1 lph), with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity.
Over 25 years of excellence, PULSAtron pumps carry agency approvals of ETL, ETL Sanitation, CE and NSF 61 (PVDF material and Degassing Head models).
| Pump Head Materials | GFPPL, PVC, PVDF, 316 SS |
| Fitting Material Available | GFPPL, PVC, PVDF |
| Bleed Valve | Same as fitting and check valve selected (except 316SS) |
| Turndown Ratio | 100:1 |
| Seat O-Rings Available | PTFE, CSPE, Viton |
| Balls Available | Ceramic, PTFE, 316 SS, Alloy C |
| Diaphragms | PTFE-faced CSPE-backed |
| Tubing Available | Clear PVC, White PE, PVDF |
| Power Input | 115 VAC – 50/60 HZ -1 ph, 230 VAC – 50/60 HZ – 1 ph |
| Peak Input Power | 130 Watts, Average Input Power At Max SPM: 50 Watts |
| Average Current Draw | 115 VAC: Amps – 0.6, 230 VAC: Amps – 0.3 |
| Product Options | Optional Control: External pace with auto/manual selection |
| Optional ratio: 1000:1 by model | |
| Accessories | |
| Dampeners | |
| Gauges | |
| KOP Kits | |
| Pre-Engineered Systems | |
| Process Controllers | |
| Tanks |
