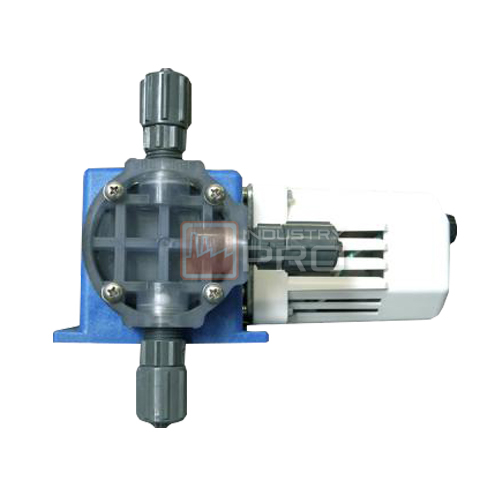

ปั๊มจ่ายสารเคมี มิเตอร์ริ่งปั๊ม PULSAFEEDER Chem-Tech Prime Performance Series

The Chem-Tech Prime Performance Series pumps have a specially designed degassing valve system for applications using off-gassing chemicals like sodium hypochlorite. Built upon motorized-diaphragm technology, the PRIME PERFORMANCE Series delivers dependable performance, extended longevity and consistent metering over long periods of time in a compact form. PP100 Models – Perfect for off-gassing applications where economical, consistent performance is required. Capable of a wide range of flows, from less than 15 gpd (2.34 lph) up to 30 gpd (4.72 lph) and pressures up to 100 psi (7 bar).
PP150 Models – Built upon the same solid platform as the 100 Models, these units are capable of higher flow rates.

With a range offering up to 100 gpd (15.76 lph), the Series 150 can meet the demands of larger applications. Maximum pressure is 60 psi (4.2 bar).

(1 customer review)

ปั๊มจ่ายสารเคมี PULSAFEEDER Chem-Tech Prime Performance Series

Degassing pump head

  • Guided quad check valve system
  • Feed rate control

SPECIFICATIONS

Pump Head Materials PVC
Fitting Material Available PVC
Seat O-Rings Available CSPE, Viton
Balls Available Ceramic
Diaphragms PTFE-faced CSPE-backed
Tubing Available Clear PVC, White PE, Black PE
Power Input 115 VAC – 60 HZ, 230 VAC – 50 HZ, 230 VAC – 60 HZ
Product Options Duplex Head
Current Interrupter
15 or 35 Gallon Tank with Bulkhead
Accessories KOP Kits
Gauges
Dampeners
Pressure Relief Valves
Tanks
Pre-Engineered Feed Systems
Process Controllers
