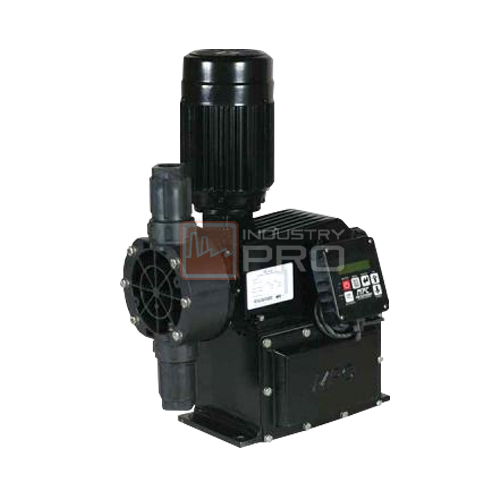

The OMNI Series DC2-4 is designed to be an economical, compact, rugged, simple, and reliable diaphragm metering pump. It features an industrial design to work in just about any application. OMNI series pumps are an outstanding choice for the customer looking for a simple and compact diaphragm metering pump. These reliable metering pumps are designed to perform in the widest range of chemical dosing applications. The OMNI Series DC2-4 worm gear is constructed of durable long life bronze and has double shielded greased for life bearings. Both reduce your maintenance and eliminate the need to to buy or change oil.
| Pump Head Materials | PVDF, 316 SS, PP |
| Turndown Ratio | 1000:1 with MPC Controller |
| Wetend | PP, PVDF, 316 SS |
| Diaphragms | PTFE-faced CSPE-backed |
| Pump Controls Links | Automatically controls and displays flow with a 4-20 mA input, Handheld keypad attached to pump with 4.5 ft of cable, Manual stroke control, Controls pumps up to a 1000:1 turndown ratio, Displays flow rate of the pump in gph or lph |
| Ball Checks Available | Ceramic, 316 SS |
| Connection Size Available | DC2: 0.25″ FNPT, DC3-DC4: 0.5″ FNPT or FBSPT |
| Product Options | Motor |
| MPC – Metering Pump Controller | |
| Accessories | Back Pressure Valves |
| KOP Kits | |
| Pressure Gauges | |
| PulsaLube | |
| Pulsation Dampeners |
