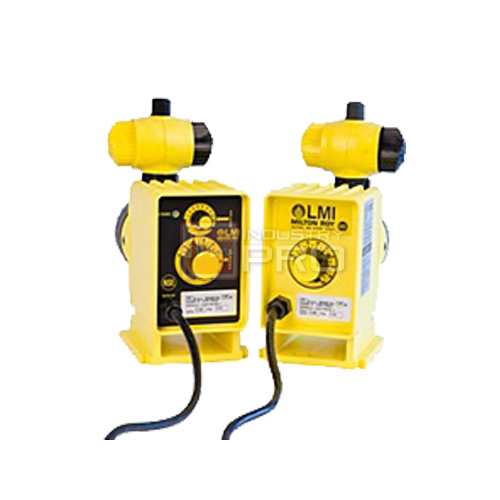

Metering Pump LMI P Series is designed for more economical chemical injection. The totally enclosed, chemically resistant housing and encapsulated electronics provide the performance and long life that you’ve come to expect from an LMI Pump. The compact size and wide range of outputs makes it ideal for OEM applications.
Control Codes:
0 – Single Manual Control (fixed speed, manual stroke length control)
1 – Dual Manual Control (speed and stroke length)
7 – Pulse Input / Dual Manual Control
| Output Codes with standard liquid end | |
| Max Capacity: | Max Pressure: |
| PX2 – 0.21 GPH (0.79 l/h) | 150 psi (10.3 Bar) |
| PX3 – 0.42 GPH (1.6 l/h) | 110 psi (7.6 Bar) |
| PX4 – 0.58 GPH (2.2 l/h) | 250 psi (17.3 Bar) |
| PX5 – 1.0 GPH (3.8 l/h) | 110 psi (7.6 Bar) |
| PX6 – 2.0 GPH (7.6 l/h) | 50 psi (3.5 Bar) |
