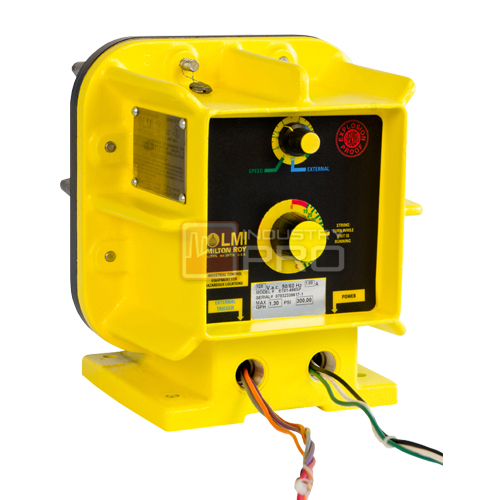

The Series E Metering Pump is designed for use in hazardous environments. It meets or exceeds all standards for Class I, Division I, Groups C and D; Class II, Division I, Groups E, F and G. The rugged, urethane coated, cast housing and encapsulated electronics provide excellent chemical resistance and long life.
Control Codes:
7 – Pulse Input / Dual Manual Control
| Output Codes with Standard Liquid End | |
| Max Capacity | Max Pressure |
| E70 – 1.3 GPH (4.9 l/h) | 300 psi (20.7 Bar) |
| E71 – 2.5 GPH (9.5 l/h) | 150 psi (10.3 Bar) |
| E72 – 4.0 GPH (15.1 l/h) | 100 psi (6.9 Bar) |
| E73 – 8.0 GPH (30.3 l/h) | 60 psi (4.1 Bar) |
| E74 – 20 GPH (75.7 l/h) | 25 psi (1.7 Bar) |
