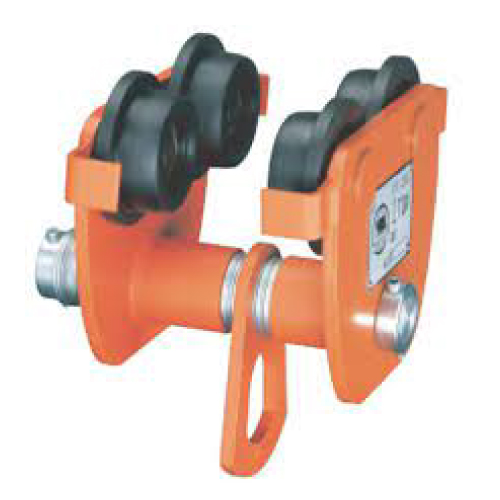

Available in capacities from ½ ton through 10 tons with a minimum adjustability of 2 inches. Wheels are equipped with lifetime lubricated ball bearings and compound tread which allow usage on either wide flange or American Standard I beams. Hand Geared Trolleys are equipped with Zinc plated hand chain with a drop equal to the lift of the hoist which is suspended from it. Minus one foot.
| Model | Capacity (Ton) | DIMENSION (INCH) | NW/LBS | Min Radius Curve (Inch) | |
| Flange Width | Headroom (H) | ||||
| PT-050 | 0.5 | 2-6 | 4.5 | 14 | 40 |
| PT-100 | 1 | 3-6 | 4.9 | 23 | 40 |
| PT-200 | 2 | 4-7 | 6.7 | 37 | 51 |
| PT-300 | 3 | 4-7.8 | 8.5 | 57 | 59 |
| PT-500 | 5 | 5-7.8 | 8.6 | 72 | 63 |
| PT-750 | 7.5 | 6-7.8 | 10.2 | 131 | 87 |
| PT-1000 | 10 | 6-7.8 | 10.8 | 180 | 87 |
