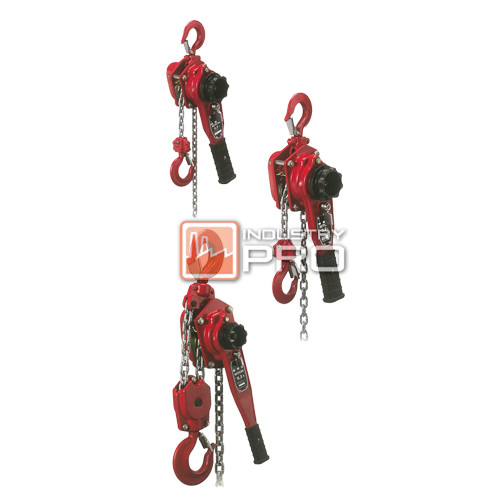

Surpassing their predecessors in quality and functions, these new-generation models provide superb cost performance.
Item no. | Rated load (t) | Standard lift (m) | Test load (t) | Load chain | Min. headroom G (mm) | Pulling effort (N) | |
Diameter (mm) | No. of falls | ||||||
RN10050 | 0.5 | 1.5 | 0.75 | 5 | 1 | 290 | 244 |
RN10080 | 0.8 | 1.2 | 5.6 | 1 | 320 | 328 | |
RN10100 | 1 | 1.5 | 6.3 | 1 | 325 | 298 | |
RN10160 | 1.6 | 2.4 | 7.1 | 1 | 380 | 386 | |
RN10320 | 3.2 | 4.8 | 10 | 1 | 485 | 379 | |
RN10630 | 6.3 | 7.9 | 10 | 2 | 595 | 401 | |
RN10900 | 9 | 11.3 | 10 | 3 | 770 | 377 |
Item no. | Net weight (kg) | External dimensions (mm) | |||||||
A | B | C | D | F | H | I | n | ||
RN10050 | 57 | 93 | 38 | 80 | 22 | 35 | 15.5 | 247 | |
RN10080 | 6.2 | 60 | 95 | 44 | 89 | 23.5 | 35 | 14 | 247 |
RN10100 | 7.2 | 66 | 96 | 47 | 93 | 27 | 40 | 20.5 | 247 |
RN10160 | 9.9 | 74 | 107 | 49.5 | 97.5 | 32.5 | 42.5 | 19 | 326 |
RN10320 | 19.9 | 89 | 117 | 63 | 138.5 | 39 | 50 | 24.5 | 406 |
RN10630 | 29.3 | 89 | 117 | 58 | 182.5 | 46 | 65 | 42 | 406 |
RN10900 | 53 | 89 | 117 | 105.5 | 239 | 55 | 85 | 47 | 406 |
Note: Specifications are subject to change for improvements without notice.
