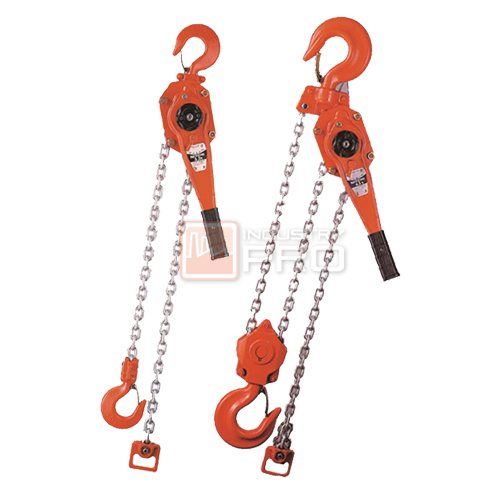

Capable of accommodating vertical, horizontal, and even diagonal load hoisting, the RB5 Series promises high work efficiency at transportation, construction, and civil engineering sites where speed, flexibility, and safety are the crucial elements.
| Item no. | Rated load (t) | Standard lift (m) | Test load (t) | Load chain | Min. headroom | Pulling effort | Net weight | |
| Diameter | No. of falls | G (mm) | P (N) | (kg) | ||||
| RB50050(F) | 0.5 | 1 | 0.75 | 4 | 1 | 280 | 416 | 3.5 |
| RB50080(F) | 0.8 | 1.5 | 1.2 | 5.6 | 1 | 290 | 260 | 5.5 |
| RB50160(F) | 1.6 | 2.4 | 7.1 | 1 | 330 | 305 | 9.6 | |
| RB50320(F) | 3.2 | 4.8 | 9 | 1 | 430 | 385 | 16.3 | |
| RB50630(F) | 6.3 | 7.9 | 9 | 2 | 580 | 390 | 30.5 | |
