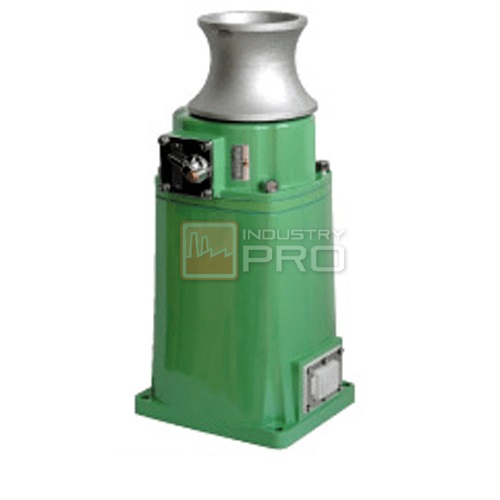

กว้านสมอเรือ Koshin รุ่น RES/REL Series (250W Type, 400W Type) Made in Japan กว้านสมอเรือสำหรับใช้งานทางทะเลและการประมง ขนาดมอเตอร์ 250W. 12V. DC และขนาด 400W. 24V. DC ด้วยขนาดที่มีความกระทัดรัดและน้ำหนักเบา จึงสะดวกในการเคลื่อนย้าย และเหมาะสำหรับใช้ในเรือประมงโดยเฉพาะ
Koshin RES/REL Series (250W Type, 400W Type)RES-2512,REL-2512,REL2524,RES-4024,REL-4024,RES-4024L,REL-4024L
Light weight & Compact Most Suitable for Fishing Boat
250 Watts Type SPECIFICATIONS
| Model | RES-2512 | REL-2512 | REL2524 | |
|---|---|---|---|---|
| Voltage | DC 12 V | DC 24 V | ||
| Voltage | 30 A | |||
| Motor Output | 250 W | |||
| Rating | 1 h / 30 A | |||
| Roller Revolution | 50 rpm (Low), 100 rpm (High) | 50 rpm (Low), 100 rpm (High) | ||
| Manual Max. Capacity | Max. | 280 kg (Low), 140 kg (High), (90 A) | 280 kg (Low), 140 kg (High) | |
| Rating | 90 kg (Low), 45 kg (High), (30 A) | 140 kg (15 A) | ||
| Winch Speed(With 100 kg Load) | 6 m/min (19 ft/min) (Low)13 m/min (42 ft/min) (High) | 23 m/min(75 ft/min) | ||
| Standard Accessories | 1 Cable Gland for Ship, 1 Waterproofing Plate, 1 Vertical Type Main Body Packing,5 Crimping Terminals, 1 Connection Terminal | |||
| Gross Weight | 20 kg (44 lbs) | 15 kg (33 lbs) | 14.5 kg (32 lbs) | |
| Dimensions LxWxH (mm) | 570 × 250 × 285 | 478 × 245 × 285 | 478 × 245 × 285 | |
| Packing Unit | 1 | |||
400 Watts Type SPECIFICATIONS
| Model | RES-4024 | REL-4024 | RES-4024L | REL-4024L | |
|---|---|---|---|---|---|
| Voltage | DC 24 V | ||||
| Voltage | 25 A | ||||
| Motor Output | 400 W | ||||
| Rating | 1 h / 25 A | ||||
| Roller Revolution | 50 rpm (Low), 100 rpm (High) | 35 rpm (Low), 70 rpm (High) | |||
| Manual Max. Capacity | Max. | 700 kg (Low), 350 kg (High) | 900 kg (Low), 450 kg (High) | ||
| Rating | 140 kg (Low), 70 kg (High), (25 A) | 200 kg (Low), 100 kg (High), (25 A) | |||
| Winch Speed(With 100 kg Load) | 20 m/min (65 ft/min) (Low)33 m/min (108 ft/min) (High) | 13 m/min (49 ft /min) (Low)23 m/min (82 ft/min) (High) | |||
| Standard Accessories | 1 Cable Gland for Ship, 1 Waterproofing Plate, 1 Vertical Type Main Body Packing,5 Crimping Terminals, 1 Connection Terminal | ||||
| Gross Weight | 24 kg (53 lbs) | 20.5 kg (45 lbs) | 24 kg (53 lbs) | 20.5 kg (45 lbs) | |
| Dimensions LxWxH (mm) | 560 × 240 × 270 | 478 × 245 × 285 | 560 × 240 × 270 | 478 × 245 × 285 | |
| Packing Unit | 1 | ||||
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RES-2512 | 530 | 119 | 4 | 93 | 14 | 278 | 22 | 166 | 140 | 106 | 210 | 15 | 180 | 239 | 209 |
| RES-4024(L) | 530 | 119 | 4 | 93 | 14 | 278 | 22 | 166 | 140 | 106 | 210 | 15 | 180 | 239 | 209 |
| REL-2512(L) | 427 | 119 | 4 | 93 | 14 | 197 | 166 | 140 | 106 | 113 | 182 | 211 | 29 | R92 | 45° |
| REL-2524 | 136 | ||||||||||||||
| REL-4024(L) | 433 | 119 | 4 | 93 | 14 | 203 | 166 | 140 | 106 | 136 | 182 | 211 | 29 | R92 | 45° |
