| Model | KOSHIN GL-13-5 | KOSHIN GL-13-10 | KOSHIN GL-20-5 | KOSHIN GL-20-10 | KOSHIN GL-25-5 | KOSHIN GL-25-10 | KOSHIN GL-32-5 | KOSHIN GL-32-10 | KOSHIN GL-40-5 | KOSHIN GL-40-10 | KOSHIN GL-50-5 | KOSHIN GL-50-10 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

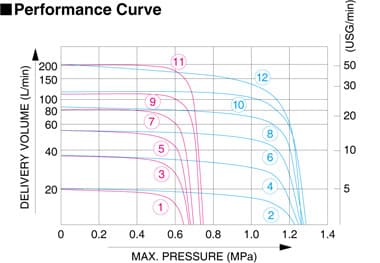

| Performance Curve No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
| Pump | Connection Dia | 13 mm (½”) | 20 mm (¾”) | 25 mm (1″) | 32 mm (1¼”) | 40 mm (1½”) | 50 mm (2″) | |||||||
| Power | 0.4 kW | 0.75 kW | 0.75 kW | 1.5 kW | 1.5 kW | 2.2 kW | 2.2 kW | 3.7 kW | 2.2 kW | 5.5 kW | 3.7 kW | 7.5 kW | ||
| Poles | 4 P | 6 P | ||||||||||||
| Max. Pressure | 0.5 MPa(5 kgf/cm2) | 1 MPa(10 kgf/cm2) | 0.5 MPa(5 kgf/cm2) | 1 MPa(10 kgf/cm2) | 0.5 MPa(5 kgf/cm2) | 1 MPa(10 kgf/cm2) | 0.5 MPa(5 kgf/cm2) | 1 MPa(10 kgf/cm2) | 0.5 MPa(5 kgf/cm2) | 1 MPa(10 kgf/cm2) | 0.5 MPa(5 kgf/cm2) | 1 MPa(10 kgf/cm2) | ||
| Delivery Volume | 60 Hz (1720 rpm) | 20 L/min(5 USG/min) | 35 L/min(9 USG/min) | 55 L/min(14 USG/min) | 85 L/min(22 USG/min) | 123 L/min(32 USG/min) | 200 L/min(52 USG/min) | |||||||
| 50 Hz (1450 rpm) | 17 L/min(4 USG/min) | 29 L/min(7 USG/min) | 46 L/min(46 USG/min) | 71 L/min(18 USG/min) | 100 L/min(26 USG/min) | 165 L/min(43 USG/min) | ||||||||
| Coupling | ZDC | JIS | ||||||||||||
| Pump Shaft Dia | ø18 mm | ø22 mm | ||||||||||||
| Gross Weight | 8 kg (17.6 lbs) | 8.5 kg (18.7 lbs) | 9 kg (19.8 lbs) | 11 kg (24.2 lbs) | 12 kg (26.4 lbs) | 23 kg (50.7 lbs) | 26 kg (57.3 lbs) | |||||||
| Dimensions LxWxH (mm) | 224 × 150 × 155 | 224 × 150 × 155 | 224x150x155 | 307x150x155 | 307 × 150 × 155 | 318 × 258 × 220 | 318 × 258 × 220 | |||||||
| Packing Unit | 1 | |||||||||||||
