| Specifications |
COME UP APE 9 |
COME UP APE 12 |

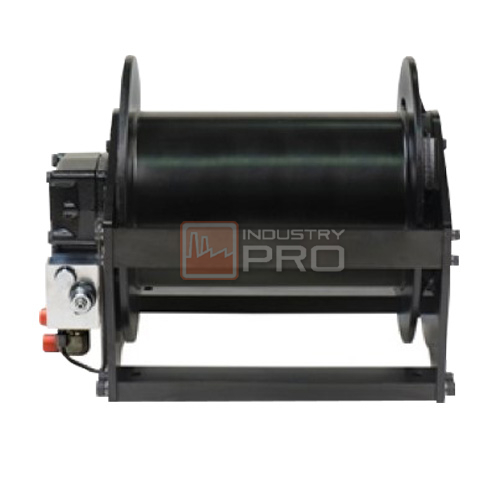

COME UP APE 16 |
COME UP APE 19 |
| Part number |
PN 681900 |
PN 681910 |
PN 681920 |
PN 681930 (Std. drum) / PN 681940 (Long drum) |
| Rated line lift |
900 kg ( 1,984 lb ) single line at the top layer of rope |
1,200 kg ( 2,640 lb ) single line at the top layer of rope |
1,600 kg ( 3,527 lb ) single line at the top layer of rope |
1,900 kg ( 4,190 lb ) single line at the top layer of rope |
| Line speed |
37 mpm / 121 fpm single line at the top layer of rope |
35.5 mpm / 116 fpm single line at the top layer of rope |
43 mpm / 141 fpm single line at the top layer of rope |
46 4 mpm / 153 fpm single line at the top layer of rope |
| Motor |
155.7 cm3/rev ( 9.5 in3/rev ) |
194.6 cm3/rev ( 11.9 in3/rev ) |
159 cm3/rev ( 9.7 in3/rev ) |
200 cm3/rev ( 12.2 in3/rev ) |
| Operation pressure |
140 bar ( 2,031 psi )with maximum back pressure on return line of 5 bar |
150 bar ( 2,176 psi )with maximum back pressure on return line of 5 bar |
205 bar ( 2,973 psi )with maximum back pressure on return line of 5 bar |
205 bar ( 2,973 psi )with maximum back pressure on return line of 5 bar |
| Max-Min pump flow |
35 – 15 l/min ( 9.2 – 4.0 g/min ) |
40 – 20 l/min ( 10.6 – 5.3 g/min ) |
45 – 15 l/min ( 11.9 – 4.0 g/min ) |
60 – 20 l/min ( 15.9 – 5.3 g/min ) |
| Gear ratio |
1-stage planetary 5:1 |
1-stage planetary 5:1 |
1-stage planetary 5.8:1 |
1-stage planetary 5.8:1 |
| Brake |
Multi-Disc Brake (MDB) patented and counter-balance valve together |
Multi-Disc Brake (MDB) patented and counter-balance valve together |
Multi-Disc Brake (MDB) patented and counter-balance valve together |
Multi-Disc Brake (MDB) patented and counter-balance valve together |
| Winch construction |
steel housings with steel drum |
steel housings with steel drum |
steel housings with steel drum |
steel housings with steel drum |
| Winch Rotation |
counter clockwise rotation of the drum |
counter clockwise rotation of the drum |
counter clockwise rotation of the drum |
counter clockwise rotation of the drum |
| Drum size (dxDxL) |
205 x 305 x 191 mm (8.1” x 12.0” x 7.5”) |
205 x 305 x 191 mm (8.1” x 12.0” x 7.5”) |
210 x 344 x 191 mm (8.3” x 13.5” x 7.5”) |
210 x 344 x 191 mm (8.3” x 13.5” x 7.5”) for std. drum |
| 210 x 344 x 320 mm (8.3” x 13.5” x 12.6”) for long drum |
| Recommended wire rope |
8 mm x 68 m with 1,960 N/mm2 grade with minimum breaking strength of 44.7 kN for EN 14492-2 rating |
10 mm x 55 m with 1,960 N/mm2 grade with minimum breaking strength of 69.8 kN for EN 14492-2 rating |
10 mm x 57m with 1,960 N/mm2 grade with minimum breaking strength of 69.8 kN for EN 14492-2 rating |
12 mm x 48m for std. drum and 12 mm x 82 m for long drum with 1,960 N/mm2 grade with minimum breaking strength of 100. kN for EN 14492-2 rating |
| 5/16” x 223 ft with EIPS grade with minimum breaking strength of 10,003 lbf for ASME 30.7 rating |
3/8” x 180 ft with EIPS grade with minimum breaking strength of 15,663 lbf for ASME 30.7 rating |
3/8” x 187 ft with EIPS grade with minimum breaking strength of 15,663 lbf for ASME 30.7 rating |
1/2” x 157 ft for std. drum and 1/2” x 269 ft for long drum with EIPS grade with minimum breaking strength of 22,487 lbf for ASME 30.7 rating |
| Mounting bolts pattern |
200 x 170 mm ( 7.9” x 6.7”) |
200 x 170 mm ( 7.9” x 6.7”) |
290 x 196 mm ( 11.4” x 7.7”) |
290 x 196 mm ( 11.4” x 7.7”) for std. drum |
| 290 x 325 mm (11.4” x 112.8”) for long drum |
| Winch weight |
63.5 kg / 140 lb |
63.5 kg / 140 lb |
81 kg / 178.6 lb |
81 kg / 178.6 lb (Std. drum) |
| 96 kg / 211.6 lb (Long drum) |
