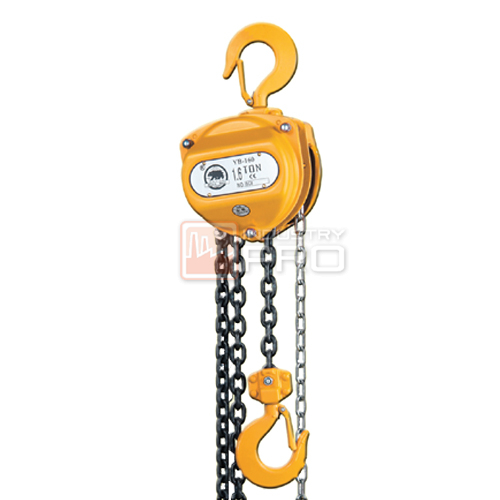

Our hand chain hoists are cataloged from ½ ton through 10 ton capacity. These also are available with overload devices. For those larger capacity applications, we will gladly quote units through 60 Ton capacity.
Our hand chain hoists are cataloged from ½ ton through 10 ton capacity. These also are available with overload devices. For those larger capacity applications, we will gladly quote units through 60 Ton capacity.
| Model | Capacity (ton) | Std Lift (FT) | Load Chain | Hand Chain (Inch) | Headroom | Pound of Pull Req’d (Lbs) | N.W. | |
| Dia x pitch (mm) | No of falls | Inch | (Lbs) | |||||
| BLACK BEAR YB-050 | 0.5 | 10 | 5×15 | 1 | 5×23.6 | 10.8 | 60 | 19.8 |
| BLACK BEAR YB-100 | 1 | 6.3×19 | 1 | 11.8 | 70 | 25.2 | ||
| BLACK BEAR YB-160 | 1.6 | 7×21 | 1 | 14.77 | 84 | 40 | ||
| BLACK BEAR YB-200 | 2 | 8×24 | 1 | 14.77 | 88 | 46.3 | ||
| BLACK BEAR YB-300 | 3 | 7.1×21 | 2 | 20.88 | 105 | 53 | ||
| BLACK BEAR YB-320 | 3.2 | 10×30 | 1 | 21.06 | 99 | 66 | ||
| BLACK BEAR YB-500 | 5 | 10×30 | 2 | 26.6 | 84 | 99 | ||
| BLACK BEAR YB-750 | 7.5 | 10×30 | 3 | 31.9 | 88 | 185 | ||
| BLACK BEAR YB-1000 | 10 | 10×30 | 4 | 34.28 | 93 | 209 | ||
