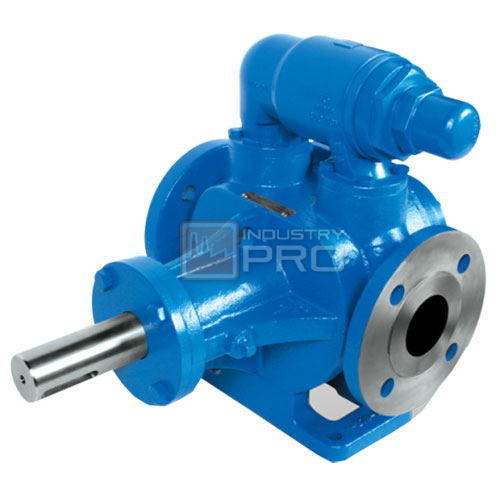

Vane pumps are used for liquid transfer applications from chemicals to liquefied gases. Vanes extend from slots in the rotor, sweeping liquid through a cam-shaped cavity. The vanes provide very low slip and high volumetric efficiency.
| Material of Construction | Size | Standard Port | Nominal Capacity At Maximum Speed | Maximum Speed | Maximum Pressure | ||
| Inches① | GPM | M3/Hr | RPM | PSI | BAR | ||
| Stainless Steel | LVP40017 | (1.5) 40 | 20 | 4 | 1,750 | 200 | 14 |
| LVP41017 | |||||||
| LVP40027 | (1.5) 40 | 40 | 9 | 1,750 | 200 | 14 | |
| LVP41027 | |||||||
| LVP41057 | (2) 50 | 80 | 15 | 1,150 | 200 | 14 | |
| LVP41087 | (2) 50 | 100 | 23 | 950 | 200 | 14 | |
| LVP41197 | (3) 80 | 125 | 29 | 520 | 200 | 14 | |
| LVP41237 | (3) 80 | 160 | 36 | 520 | 200 | 14 | |
①ANSI-compatible parts in inches, DIN-compatible parts in (mm)
Integral pressure relief valve is standard.
