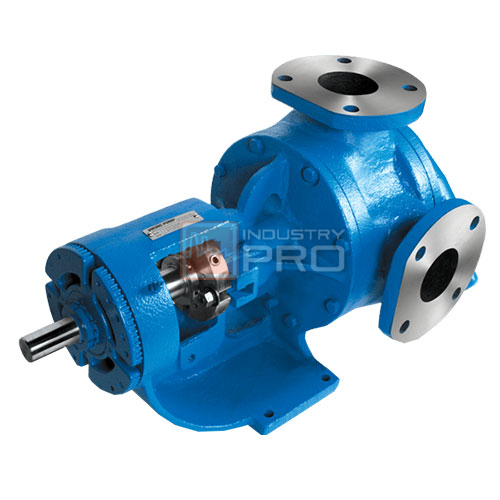

เกียร์ปั๊ม VIKING PUMP รุ่น Internal Universal Seal

Category ปั๊มเฟือง

เกียร์ปั๊ม ยี่ห้อ VIKING PUMP รุ่น Internal Universal Seal

Accommodates virtually all sealing types and manufacturers.
Back pull-out seals provide access without disturbing the wet end.
Design adaptability for an unequaled range of liquids, temperatures, and viscosities.
Rugged design with heavy duty bearings extends pump life.
Available with FDA and EN1935/2004 materials for food contact.

Material of Construction	Size		Standard	Nominal Capacity at Maximum Speed		Maximum	Maximum Pressure
Material of Construction	Size		Inches	GPM	M3/Hr	RPM	PSI	BAR
CAST IRON – DUCTILE IRON – STEEL	G	①	1	8	2	1,750	200	14
	H		1.5	15	3	1,750	200	14
	HL		1.5	30	7	1,750	200	14
	AK	①	2	67	15	1,450	200	14
	AL	①	2	90	20	1,450	200	14
	K		2	75	17	780	200	14
	KK		2	100	23	780	200	14
	L		2	135	31	640	200	14
	LQ		2.5	135	31	640	200	14
	LL		3	140	32	520	200	14
	LS		3	200	45	640	200	14
	Q		4	300	68	520	200	14
	M	①	4	420	95	420	200	14
	QS		6	500	114	520	200	14
	N		6	600	138	350	200	14
	R		8	1,100	250	280	200	14
	RS		10	1,600	365	280	125	8.5
STAINLESS STEEL	H		1.5	10	2	1,150	150	10
	HL		1.5	20	5	1,150	150	10
	K		2	50	11	520	150	10
	KK		2	65	15	520	150	10
	LQ		2.5	90	21	420	150	10
	LL		3	110	25	420	150	10
	LS		3	160	36	520	125	8.5
	Q		4	200	45	350	125	8.5
	QS		6	320	73	350	125	8.5
	N		6	600	138	350	200	14
	R		8	1,110	250	280	175	12
	RS		10	1,600	365	280	125	8.5

Integral relief valve is standard on non-jacketed pumps, except RS

Sealing / Coupling:

Packing, Component Mechanical Seals, Cartridge Mechanical Seals, Cartridge Triple Lip Seals

Porting: Foot Mount
