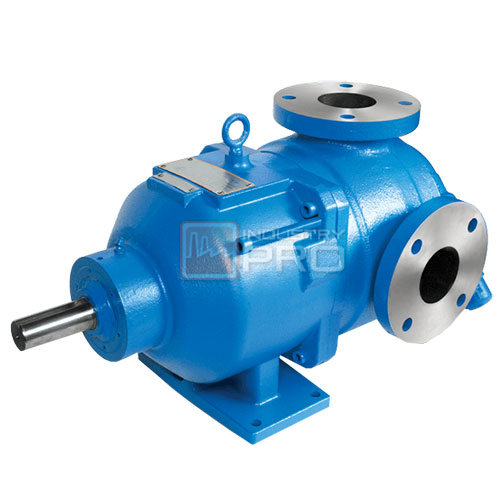

VIKING PUMP Internal Universal Mag Drive

เกียร์ปั๊ม VIKING PUMP รุ่น Internal Universal Mag Drive

Category ปั๊มเฟือง

เกียร์ปั๊ม ยี่ห้อ VIKING PUMP รุ่น Internal Universal Mag Drive

FEATURES

Reduces maintenance costs and downtime associated with shaft seal failure and replacement.
Reduces environmental costs associated with shaft seal leakage.
Minimizes installation costs when upgrading existing universal series pumps to sealless with dimensionally interchangeable footprint.
Bi-directional pumping design eliminates cost of second pump for loading or unloading.

SPECFICATIONS

Materials of Construction	Size	Standard Port	Nominal Capacity At Maximum Speed		Maximum Speed	Maximum Pressure
Materials of Construction	Size	Inches	GPM	M3/Hr	RPM	PSI	BAR
CAST IRON – STEEL	H	1.5	15	3	1,750	200	14
	HL	1.5	30	7	1,750	200	14
	K	2	80	18	780	200	14
	KK	2	100	23	780	200	14
	L	2	135	30	640	200	14
	LQ	2.5	135	30	640	200	14
	LL	3	170	39	640	200	14
	LS	3	200	45	640	200	14
	Q	4	300	68	520	200	14
	QS	6	500	114	520	200	14
STAINLESS	H	1.5	15	3	1,750	150	10
	HL	1.5	30	7	1,750	150	10
	K	2	80	18	780	150	10
	KK	2	100	23	780	150	10
	LQ	2.5	135	30	640	150	10
	LL	3	170	39	640	150	10
	LS	3	200	45	640	125	8.5
	Q	4	300	68	520	125	8.5
	QS	6	500	114	520	125	8.5

Integral relief valve is standard

OPTIONS

Neodymium Iron Boron, Samarium Cobalt Opposite (180°) (Rotatable Casing), Right Angle (90°) (Rotatable Casing), NPT/BSP, Flanged (ANSI or DIN Compatible)
