เกียร์ปั๊ม VIKING PUMP รุ่น External Mag Drive Spur Gear

Category ปั๊มเฟือง

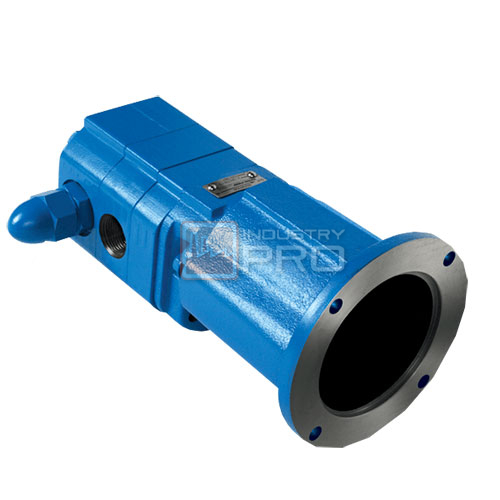

เกียร์ปั๊ม ยี่ห้อ VIKING PUMP รุ่น External Mag Drive Spur Gear

Hazardous liquids such as caustics or acids
Flammable liquids such as fuels or alcohols
Liquids which are difficult to seal such as resins or isocyanates used in polyurethane foam production
Strong aromatics such as perfumes or mercaptum
Expensive liquids such as heat transfer liquid or those used in pharmaceutical production
Applications where seal failure is absolutely unacceptable such as pipeline sampling

Size	Standard Port	Nominal Capacity at Maximum Speed		Maximum Speed	Maximum Pressure*
Size	Inches	m³/hr	GPM	RPM	BAR	PSI
417	0.375	0.01	0.06	1800	34	500
418	0.375	0.03	0.14	1800	34	500
425	0.375	0.04	0.18	1800	34	500
435	0.375	0.06	0.27	1800	34	500
450	0.375	0.08	0.36	1800	34	500
470	0.375	0.11	0.5	1800	34	500
518	0.5	0.16	0.7	1800	34	500
525	0.5	0.23	1	1800	34	500
535	0.5	0.32	1.4	1800	34	500
550	0.5	0.45	2	1800	34	500
570	0.5	0.64	2.8	1800	34	500
510	0.5	0.91	4	1800	34	500
514	0.75	1.3	5.6	1800	34	500
519	0.75	1.7	7.6	1800	14	200
528	0.75	2.5	11.2	1800	7	100
729	1	0.6	2.8	1800	34	500
741	1	0.91	4	1800	34	500
758	1	1.3	5.6	1800	34	500
782	1	1.8	8	1800	34	500
711	1	2.5	11.2	1800	34	500
716	1	3.6	16	1800	34	500
722	1.5 x 1.25	5	22	1800	34	500
732	1.5 x 1.25	7.3	32	1800	34	500
1009	1	3.66	16	1800	34	500
1013	1.5	5.7	25	1800	34	500
1026	2	11.34	50	1800	34	500
1420	2	15.9	70	1800	34	500
1436	3	28.38	125	1800	20	290
1456	4	43.19	190	1800	13	190
