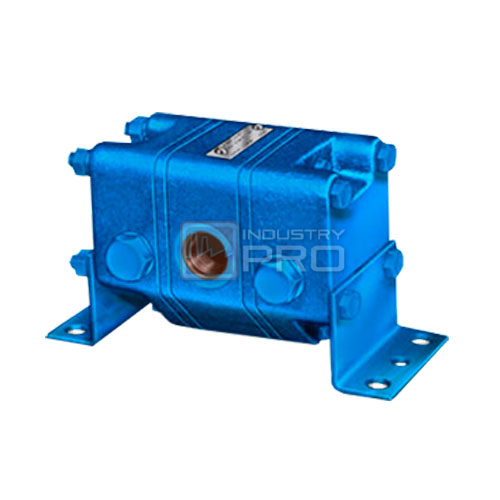

Anti-friction needle bearings, precision ground heat-treated steel gears and case-hardened steel shafts ensure maximum operating life. SAE O-ring porting is standard.
| Capacity | Metric | English |
| 0 – 11 m³/hr | 0 – 50 GPM | |
| 0 – 240 BAR (at outlet) | 0 – 3500 PSI (at outlet) | |
| Temperature | -40 – 105° C | -40 – 225° F |
| Model | No. of Sections | Displacement Per Section | Inlet Flow Range | Maximum Pressure (Cont.)* | |||
| (outlet ports) | cm³/rev | in³/rev | LPM | GPM | BAR | PSI | |
| GD-05BB00-GV | 2 | 2.27 | 0.139 | 3.8 – 18.9 | 1-5 | 103 (103) | 1500 (1500) |
| GD-05BB00-GO | 2 | 2.27 | 0.139 | 3.8 – 18.9 | 1-5 | 207 (207) | 3000 (3000) |
| GD-05BBB0-GV | 3 | 2.27 | 0.139 | 5.6 – 28.3 | 1.5 – 7.5 | 103 (103) | 1500 (1500) |
| GD-05BBB0-GO | 3 | 2.27 | 0.139 | 5.6 – 28.3 | 1.5 – 7.5 | 207 (207) | 3000 (3000) |
| GD-05BBBB-GV | 4 | 2.27 | 0.139 | 7.5 – 38.7 | 2-10 | 103 (103) | 1500 (1500) |
| GD-05BBBB-GO | 4 | 2.27 | 0.139 | 7.5 – 38.7 | 2-10 | 207 (207) | 3000 (3000) |
| GD-05EE00-GV | 2 | 6.36 | 0.388 | 11-53 | 3-14 | 103 (83) | 1500 (1200) |
| GD-05EE00-GO | 2 | 6.36 | 0.388 | 11-53 | 3-14 | 166 (83) | 2400 (1200) |
| GD-05EEE0-GV | 3 | 6.36 | 0.388 | 17 – 68 | 4.5 – 18 | 103 (83) | 1500 (1200) |
| GD-05EEE0-GO | 3 | 6.36 | 0.388 | 17 – 68 | 4.5 – 18 | 166 (83) | 2400 (1200) |
| GD-05EEEE-GV | 4 | 6.36 | 0.388 | 23 – 68 | 6-18 | 103 (83) | 1500 (1200) |
| GD-05EEEE-GO | 4 | 6.36 | 0.388 | 23 – 68 | 6-18 | 166 (83) | 2400 (1200) |
| GD-07BB00-GV | 2 | 12.53 | 0.765 | 23 – 95 | 6-25 | 103 (103) | 1500 (1500) |
| GD-07BB00-GO | 2 | 12.53 | 0.765 | 23 – 95 | 6-25 | 207 (172) | 3000 (2500) |
| GD-07BBB0-GV | 3 | 12.53 | 0.765 | 34 – 142 | 9 – 37.5 | 103 (103) | 1500 (1500) |
| GD-07BBB0-GO | 3 | 12.53 | 0.765 | 34 – 142 | 9 – 37.5 | 207 (172) | 3000 (2500) |
| GD-07BBBB-GV | 4 | 12.53 | 0.765 | 45 – 189 | 12-50 | 103 (103) | 1500 (1500) |
| GD-07BBBB-GO | 4 | 12.53 | 0.765 | 45 – 189 | 12-50 | 207 (172) | 3000 (2500) |
| GD-07DD00-GV | 2 | 25.07 | 1.53 | 45 – 189 | 12-50 | 103 (86) | 1500 (1250) |
| GD-07DD00-GO | 2 | 25.07 | 1.53 | 45 – 189 | 12-50 | 172 (86) | 2500 (1250) |
| GD-07DDD0-GV | 3 | 25.07 | 1.53 | 68 – 284 | 18 – 75 | 103 (86) | 1500 (1250) |
| GD-07DDD0-GO | 3 | 25.07 | 1.53 | 68 – 284 | 18 – 75 | 172 (86) | 2500 (1250) |
| GD-07DDDD-GV | 4 | 25.07 | 1.53 | 91 – 284 | 24 – 75 | 103 (86) | 1500 (1250) |
| GD-07DDDD-GO | 4 | 25.07 | 1.53 | 91 – 284 | 24 – 75 | 172 (86) | 2500 (1250) |
* Maximum Pressure Differential Between Sections for Intermittent Duty (Continuous Duty Pressure Shown in Parentheses). Slip per Section in GPM/100 PSI is 0.010 for 05B, 0.034 for 05E, 0.045 for 07B, and 0.060 for 07 E.
