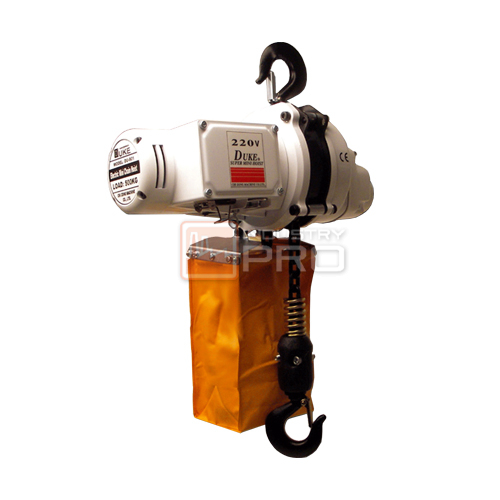

รอกโซ่ไฟฟ้า DUKE รุ่น DU Series

รอกโซ่ไฟฟ้า DUKE รุ่น DU Series



Product Description

Light Weight. High Performance

• Model No.:DU-825
• Certification:CE ,ISO 9001 ,TUV
• Made in:Taiwan, ROC

Spec

• machine size :42cmX16cmX48cm



Key Features

Mini chain hoist

Model：DU-825

Capacity(kg)：250kg

Introduction Of DUKE Brand Electric Winch.

1) The DUKE Electric Winch Adopt.

Brake System: (1) Motor Brake  (2) Gear Brake.

2) Rugged Alloy Body Construction Provide Lightweight,  Compact & Short Headroom.

3)Adopt High Tensile Alloy Wire Rope.  Galvanized & Wear Resistance.

4)All Gears And Pinion Shaft Are Made From High Quality Alloy Steel Of Extreme Surface Hardness And Support On Both Ends By Anti-Friction Ball Bearings. Gears Operate In Sealed Oil Bath.

Features

• Braking: Dual braking system combines mechanical plus regenerative braking, provides instant and safe braking.
• Gearing: Precision machined gears heat treated for strength and durability, the ball or needle bearings at all rotating points run in oil bath lubrication for a quieter, smoother and cooler operation.
• Loading sheave: Provide smooth lifting, reduce vibration and wear.
• Housing: Lightweight, cast aluminum alloy
• Friction clutch: A high performance and durability friction clutch that is integrated with the load brake. This design is to slip in order to prevent overloading and over travel that could damage the hoist.
• Chain: Designed and manufactured by FEC, Japan, grade 80 alloy steel with resistance and long life service.
• Chain bag: The vinyl chain bag container is provided standard with hoist.
• Switch: Simply layout of the control with 3M power cable as standard and emergency stop as option.



SPECIFICATIONS

MODE	DUKE DU-825
CAPACITY (KG)	250
STANDARD LIFT (M)	3
Power(Voltage)	100V-120V/200V-240V
CYCLE (HZ)	50/60
MOTOR POWER (Kw)	1.3
LIFTING SPEED (M/MIN.)	5
CHAIN DIA. (mm)	Ø6.3

Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan. We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”. Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.



Products range are :

AC power:

Electric mini chain hoist
Electric mini wire winch
Electric wire winch
Electric chain hoist
Electric all-purpose wire winch.

DC power:

OFF-ROAD winch.



รอกโซ่ไฟฟ้า ELECTRIC MINI CHAIN HOIST ยี่ห้อ DUKE รุ่น DU-901



Product Description

Multi-functions. Multi-Purposes

• Model No.:DU-901
• Certification:ISO 9001 ,CE ,TUV
• Made in:Taiwan, ROC



Key Features

Mini chain hoist

Model：DU-901

Capacity(kg)：500kg

Introduction Of DUKE Brand Electric Winch.

1) The DUKE Electric Winch Adopt.

Brake System: (1) Motor Brake  (2) Gear Brake.

2) Rugged Alloy Body Construction Provide Lightweight,  Compact & Short Headroom.

3)Adopt High Tensile Alloy Wire Rope.  Galvanized & Wear Resistance.

4)All Gears And Pinion Shaft Are Made From High Quality Alloy Steel Of Extreme Surface Hardness And Support On Both Ends By Anti-Friction Ball Bearings. Gears Operate In Sealed Oil Bath.



Features

• Braking: Dual braking system combines mechanical plus regenerative braking, provides instant and safe braking.
• Gearing: Precision machined gears heat treated for strength and durability, the ball or needle bearings at all rotating points run in oil bath lubrication for a quieter, smoother and cooler operation.
• Loading sheave: Provide smooth lifting, reduce vibration and wear.
• Housing: Lightweight, cast aluminum alloy
• Friction clutch: A high performance and durability friction clutch that is integrated with the load brake. This design is to slip in order to prevent overloading and over travel that could damage the hoist.
• Chain: Designed and manufactured by FEC, Japan, grade 80 alloy steel with resistance and long life service.
• Chain bag: The vinyl chain bag container is provided standard with hoist.
• Switch: Simply layout of the control with 3M power cable as standard and emergency stop as option.



SPECIFICATIONS

MODE	DUKE DU-901
CAPACITY (KG)	500
STANDARD LIFT (M)	3
Power(Voltage)	100V-120V
	200V-240V
CYCLE (HZ)	50/60
MOTOR POWER (Kw)	1.3
LIFTING SPEED (M/MIN.)	5/6
CHAIN DIA. (mm)	Ø6.3

Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan. We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”. Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.



Products range are :

AC power:

Electric mini chain hoist
Electric mini wire winch
Electric wire winch
Electric chain hoist
Electric all-purpose wire winch.

DC power:

OFF-ROAD winch.



รอกโซ่ไฟฟ้า ELECTRIC MINI CHAIN HOIST ยี่ห้อ DUKE รุ่น DU-902



Product Description

Light Weight. High Performance



Spec

• Height(cm) :40
• Weight(kg) :30
• Length(cm) :50
• Width(cm) :30
• machine size :42cmX16cmX50cm



Key Features

Mini chain hoist

Model：DU-902

Capacity(kg)：1000kg

Introduction Of DUKE Brand Electric Winch.

1) The DUKE Electric Winch Adopt.

Brake System: (1) Motor Brake  (2) Gear Brake.

2) Rugged Alloy Body Construction Provide Lightweight,  Compact & Short Headroom.

3)Adopt High Tensile Alloy Wire Rope.  Galvanized & Wear Resistance.

4)All Gears And Pinion Shaft Are Made From High Quality Alloy Steel Of Extreme Surface Hardness And Support On Both Ends By Anti-Friction Ball Bearings. Gears Operate In Sealed Oil Bath.



Features

• Braking: Dual braking system combines mechanical plus regenerative braking, provides instant and safe braking.
• Gearing: Precision machined gears heat treated for strength and durability, the ball or needle bearings at all rotating points run in oil bath lubrication for a quieter, smoother and cooler operation.
• Loading sheave: Provide smooth lifting, reduce vibration and wear.
• Housing: Lightweight, cast aluminum alloy
• Friction clutch: A high performance and durability friction clutch that is integrated with the load brake. This design is to slip in order to prevent overloading and over travel that could damage the hoist.
• Chain: Designed and manufactured by FEC, Japan, grade 80 alloy steel with resistance and long life service.
• Chain bag: The vinyl chain bag container is provided standard with hoist.
• Switch: Simply layout of the control with 3M power cable as standard and emergency stop as option.



SPECIFICATIONS

MODE	DUKE DU-902
CAPACITY (KG)	1000
STANDARD LIFT (M)	3
Power(Voltage)	100V-120V
	200V-240V
CYCLE (HZ)	50/60
MOTOR POWER (Kw)	1.3
LIFTING SPEED (M/MIN.)	5/6
CHAIN DIA. (mm)	Ø6.3

Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan. We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”. Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.



Products range are :

AC power:

Electric mini chain hoist
Electric mini wire winch
Electric wire winch
Electric chain hoist
Electric all-purpose wire winch.

DC power:

OFF-ROAD winch.
