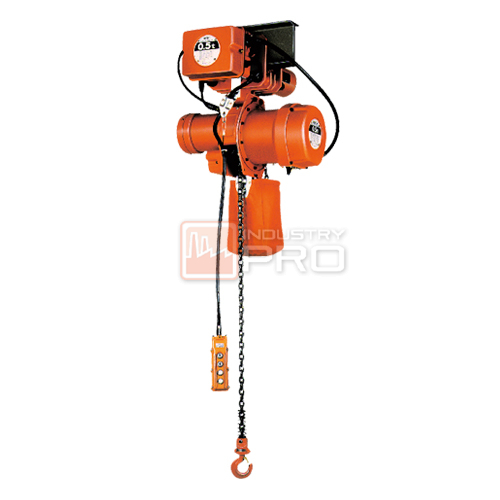

Two-Speed Motorized Trolley Type Two-Speed Electric Chain Hoist
| Item no. | Rated load (t) | Standard lift (m) | Hoisting speed | |||||||
| High | Low | |||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| m/sec | m/min | m/sec | m/min | m/sec | m/min | m/sec | m/min | |||
| MTET5005 | 0.5 | 4 | 0.133 | 8 | 0.157 | 9.4 | 0.032 | 1.9 | 0.037 | 2.2 |
| MTET5010 | 1 | 0.072 | 4.3 | 0.083 | 5 | 0.017 | 1 | 0.02 | 1.2 | |
| MTET5020 | 2 | 0.08 | 4.8 | 0.093 | 5.6 | 0.02 | 1.2 | 0.023 | 1.4 | |
| MTET5025 | 2.5 | 0.063 | 3.8 | 0.073 | 4.4 | 0.017 | 1 | 0.018 | 1.1 | |
| MTET5050 | 5 | 0.032 | 1.9 | 0.037 | 2.2 | 0.008 | 0.5 | 0.01 | 0.6 | |
| Item no. | Rated load (t) | Motor output (kW) | Motor insulation class | Rated time (min) | Load chain | |||||
| High | Low | Diameter | No. of falls | |||||||
| 50Hz | 60Hz | 50Hz | 60Hz | High | Low | |||||
| MTET5005 | 0.5 | 0.83 | 1 | 0.21 | 0.25 | B | 20 | 20 | 7.1 | 1 |
| MTET5010 | 1 | |||||||||
| MTET5020 | 2 | 1.83 | 2.2 | 0.46 | 0.55 | 11.2 | ||||
| MTET5025 | 2.5 | |||||||||
| MTET5050 | 5 | 2 | ||||||||
| Item no. | Rated load (t) | Traversing speed | Motor output (kW) | Motor insulation class | ||||||||
| High | Low | |||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | High | Low | |||||||
| m/sec | m/min | m/sec | m/min | m/sec | m/min | m/sec | m/min | |||||
| MTET5005 | 0.5 | 0.333 | 20 | 0.4 | 24 | 0.108 | 6.5 | 0.133 | 8 | 0.2 | 0.07 | E |
| MTET5010 | 1 | |||||||||||
| MTET5020 | 2 | 0.4 | 0.14 | |||||||||
| MTET5025 | 2.5 | |||||||||||
| MTET5050 | 5 | 0.167 | 10 | 0.2 | 12 | 0.055 | 3.3 | 0.067 | 4 | |||
| Item no. | Rated load (t) | Rated time (min) | Traversing rail width b (mm) | Min. curve radius (m) | Power cable length (m) | Push-button switch cord length S (m) | Test load (t) | Min. headroom G (mm) | Hook mass (kg) |
| MTET5005 | 0.5 | 15 | 75,100,125 | 1 | 10 | 4 | 0.625 | 535 | 0.7 |
| MTET5010 | 1 | 1.25 | 545 | 0.9 | |||||
| MTET5020 | 2 | 100,125,150 | 2.5 | 725 | 2.3 | ||||
| MTET5025 | 2.5 | 1.5 | 3.125 | 805 | 3.5 | ||||
| MTET5050 | 5 | 125,150,175 | 6.25 | 975 | 13.5 |
Notes:
