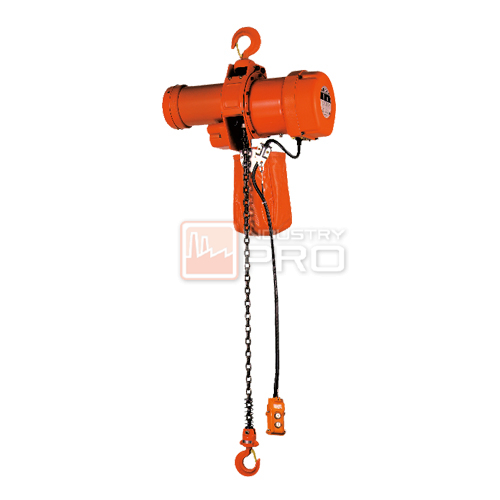

Two-Speed Electric Chain Hoist
| Item no. | Rated load (t) | Standard lift (m) | Hoisting speed | |||||||
| High | Low | |||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| (m/sec) | (m/min) | (m/sec) | (m/min) | (m/sec) | (m/min) | (m/sec) | (m/min) | |||
| MT5005 | 0.5 | 4 | 0.133 | 8 | 0.157 | 9.4 | 0.032 | 1.9 | 0.037 | 2.2 |
| MT5010 | 1 | 0.072 | 4.3 | 0.083 | 5 | 0.017 | 1 | 0.02 | 1.2 | |
| MT5020 | 2 | 0.08 | 4.8 | 0.093 | 5.6 | 0.02 | 1.2 | 0.023 | 1.4 | |
| MT5025 | 2.5 | 0.063 | 3.8 | 0.073 | 4.4 | 0.017 | 1 | 0.018 | 1.1 | |
| MT5050 | 5 | 0.032 | 1.9 | 0.037 | 2.2 | 0.008 | 0.5 | 0.01 | 0.6 | |
| Item no. | Rated load (t) | Motor output (kW) | Motor insulation class | Rated time (min) | Load chain | Power cable length (m) | Push-button switch cord length S (m) | Test load (t) | |||||
| High | Low | ||||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | High | Low | Diameter | No. of falls | ||||||
| MT5005 | 0.5 | 0.83 | 1 | 0.21 | 0.25 | B | 20 | 20 | 7.1 | 1 | 5 | 3.6 | 0.625 |
| MT5010 | 1 | 1.25 | |||||||||||
| MT5020 | 2 | 1.83 | 2.2 | 0.46 | 0.55 | 11.2 | 3.8 | 2.5 | |||||
| MT5025 | 2.5 | 3.125 | |||||||||||
| MT5050 | 5 | 2 | 6.25 | ||||||||||
