รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECE4

รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น ECE4 Series

Category Tags , ,
ขอใบเสนอราคา/Request a quote

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECE4 Series

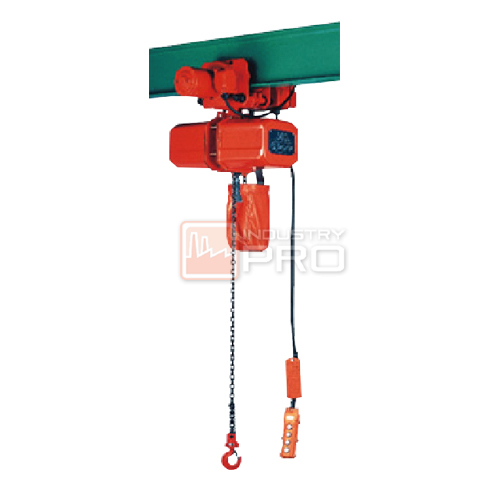

Motorized Trolley Type electric Chain Hoist (3-phase 200 V)

  • This electric trolley hoist can be moved upward, downward, or in a traversing direction via a four-button switch.
  • A six-button switch is used when combining the hoist with a motorized crane (traveling type).
  • The rated load of 1 tw and 2 t is applicable to a two-chain configuration.
  • The standard lift is 3 m and 6 m. Longer lifts are available upon request.
  • The length of a standard power cable is 1 m. Please consult us for different cable lengths or for other power feeding systems.



SPECIFICATIONS

Item no. Rated load Standard lift (m) Traversing Traversing rail width b (mm) Min. curve radius (m)
Speed m/sec (m/min) Motor output (kW) Rated time (min)
50Hz 60Hz
ECE40025 250kg 3 0.333 0.4 0.2 30 75 1
6 -20 -24 100
ECE40050 500kg 3 125
6
ECJE40100 1tw 3
6
ECE40100 1t 3
6
ECJE40200 2t 3 0.4 100
125
6 150



Item no. Power cable length (m) Push-button switch cord length S (m) Min. headroom G (mm) Net weight* (kg) Hook mass (kg)
ECE40025 1 3 495 62 0.7
6 66
ECE40050 3 530 65
6 69
ECJE40100 3 660 71 2.4
6 77
ECE40100 3 565 76 0.9
6 80
ECJE40200 3 780 107 5
6 114

Notes:

  • Specifications are subject to change for improvements without notice.
  • Trolleys that run at half the speed of those in the table are also available.
  • Please refer to the specifications for the EC4 for items related to hoisting.
