รอกโซ่ไฟฟ้า NICHI รุ่น ECCP4

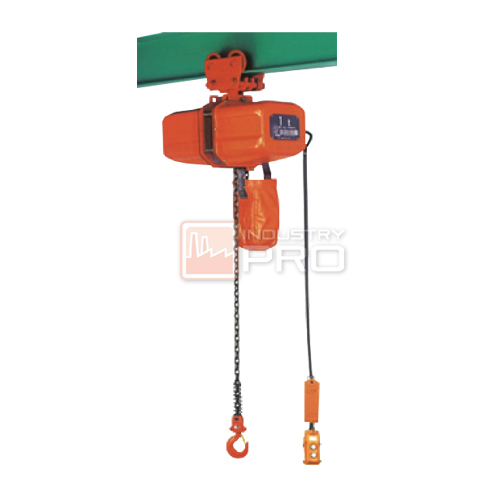

Plain Trolley Type Single-Phase Electric Chain Hoist (1-phase 100V)

This single-phase electric chain hoist with a plain trolley can be moved upward and downward via a two-button switch.
The rated load of 1 tw is applicable to a two-chain configuration.
The standard lift is 3 m.
The length of a standard power cable is 5 m. Please consult us for different cable lengths or for other power feeding systems.

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECCP4

Plain Trolley Type Single-Phase Electric Chain Hoist (1-phase 100V)

This single-phase electric chain hoist with a plain trolley can be moved upward and downward via a two-button switch.
The rated load of 1 tw is applicable to a two-chain configuration.
The standard lift is 3 m.
The length of a standard power cable is 5 m. Please consult us for different cable lengths or for other power feeding systems.

Item no.	Rated load	Standard lift (m)	Traversing rail width (mm)	Min. curve radius	Power cable length (m)	Push-button switch cord length S (m)	Min. headroom G (mm)	Hook mass (kg)	Net weight* (kg)
ECCP40030	300kg	3	75	1	5	2.6	475	0.7	42
ECCP40050	500kg		100				510	0.7	42
ECCJP40100	1tw		125				640	2.4	48

Notes:
