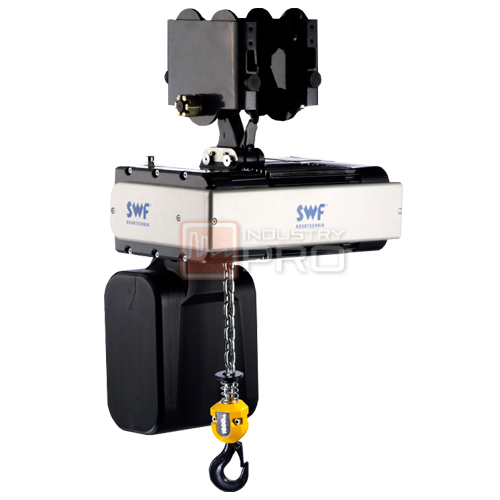

CHAINster electric chain hoists for loads up to 5,000 kg
• Optimal space utilization
Compact dimensions and best hook approach, space saving trolleys
• High safety in operation
Emergency Stop button, 48 V Contactor control, drop stops, robust industrial design
• Gentle work
Upper and lower lifting limit switch, minor noise emission, stepless load moving with motor trolley and inverter
• Low installation and maintenance costs
Standardized electrical modules generally with plug connections, easy accessibility due to modular construction, time saving adjustment of trolley flange width, low weight
• With upper hook, push and motor trolley
• Housing made completely from aluminum
• Up to 5,000 kg; up to 2,500 kg on a single fall
• Patented chain sprocket with intermediate teeth and metal chain guide
• Reliable contactor control
• Lifetime brake
• Upper hook
• 2 lifting speeds up to 6/1 ratio depending to load
• Up to 5,000 kg; up to 2,500 kg on a single fall
• Patented chain sprocket with intermediate teeth and metal chain guide
• Mechanical overload device
• 2-step upper and lower emergency lifting limit switch
• High-quality reliable contactor control 48 V with main switch
• Electrical connections plugable, for relieved maintenance
• Thermal protection for lifting motor
• Control pendant IP65 with emergency button, with plug
• Lifetime brake
• Separate brake rectifier
• Electrical provision for motor trolley
• Housing made completely from aluminum
• Protection IP55
• Ambient temperature -20 °C up to +50 °C
• Epoxy powder painting, 70 μm
• Optional push trolley or inverter controlled motor trolley
• Trolley limit switch
• Upper eye suspension instead of hook
• Load chain and hook made from stainless steel
• 2 step and 4 step gear limit switch
• Second hoisting brake
• Rain cover
• Standby heating for motors and electrics
• Remote radio control „RadioMaster“
• Explosion-proof application
• Power supply from 230V up to 675V, 3 phases
• HandyMaster control pendant for increased efficiency
• Version for food industry
