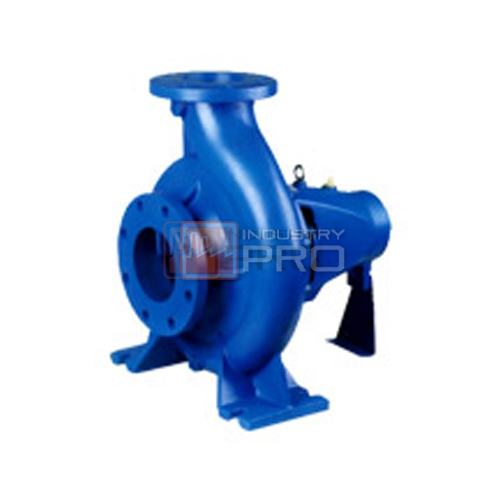

ปั๊มหอยโข่ง MATRA รุ่น N Series

Matra N Series ปั๊มน้ำ “มาตร้า” ปั้มน้ำคุณภาพเหมาะสำหรับงานสูบน้ำทุกประเภท สินค้าคุณภาพผลิตและนำเข้าจากอิตาลี
เหมาะสำหรับสูบน้ำโรงงานอุตสาหกรรม โรงแรม อาคาร ระบบคูลลิ่งาวเวอร์ ฯลฯ ที่ต้องการส่งสูงและได้ปริมาณน้ำทีละมาก ๆ

Category ปั๊มน้ำ Tags Centrifugal Pump, MATRA, Water Pump, ปั๊มน้ำดี, ปั๊มหอยโข่ง

ปั๊มหอยโข่ง MATRA รุ่น N Series

SPECIFICATIONS TABLE1

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N32/13	4.5	1.25	6	1450	0.156	0.55	Y801-4 0.55 kW	47	1.8	Ø 139	50	32	–	–	27.5
	7.5	2.08	5.5		0.197	0.55		57	2
	9	2.5	5		0.211	0.55		58	2.3
MATRA N32/16	6	1.67	9.5	1450	0.353	0.55	Y801-4 0.55 kW	44	1.8	Ø 174	50	32	–	–	35
	9	2.5	9		0.416	0.55		53	2
	11	3.05	8.3		0.46	0.55		54	2.4
MATRA N32/20	6	1.67	15	1450	0.646	0.75	Y90S-4 1.1 kW	38	1.8	Ø 214	50	32	–	–	41
	9	2.5	14		0.763	1.1		45	2
	11	3.05	13.2		0.84	1.1		47	2.3
MATRA N32/26	7	1.94	24.2	1450	1.53	2.2	Y100L2-4 3 kW	30	1.8	Ø 264	50	32	–	–	59
	11	3.05	23		1.81	2.2		38	2
	13	3.61	22		1.95	3		40	2.4

SPECIFICATIONS TABLE2

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N40/13	9	2.5	6.3	1450	0.297	0.55	Y801-4 0.55 kW	52	1.8	Ø 139	65	40	–	–	30
	15	4.17	5.8		0.365	0.55		65	2
	18	5	5.3		0.406	0.55		64	2.4
MATRA N40/16	9	2.5	9.7	1450	0.495	0.55	Y90S-4 1.1 kW	48	1.8	Ø 174	65	40	–	–	36
	15	4.17	8.5		0.579	0.75		60	2
	18	5	7.6		0.642	1.1		58	2.4
MATRA N40/20	9	2.5	15.2	1450	0.79	1.1	Y90L-4 1.5 kW	47	1.8	Ø 214	65	40	–	–	44
	15	4.17	14		1.04	1.5		55	2
	18	5	12.8		1.16	1.5		54	2.4
MATRA N40/26	10	2.78	24	1450	1.77	2.2	Y100L2-4 3 kW	30	1.8	Ø 264	65	40	–	65	61
	16	4.44	23		2.18	2.2		38	2
	20	5.56	21.8		2.38	3		40	2.4

SPECIFICATIONS TABLE3

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N40/32	11	3	38	1450	3.5	5.5	Y132S-4 5.5 kW	32	3.1	Ø 329	65	40	–	65	95.8
	18	5	35		4.24	5.5		40.5	2.1
	21.5	6	32		4.83	5.5		39	3.8
MATRA N40/32A	10.5	2.92	34.5	1450	3.24	4	Y132S-4 5.5 kW	30.5	3.3	Ø 315	65	40	–	65	95.8
	17	4.72	32		3.85	5.5		38.5	2
	20.5	5.7	29		4.32	5.5		37.5	2.9
MATRA N40/32B	10	2.78	31	1450	2.91	4	Y132S-4 5.5 kW	29	3.6	Ø 300	65	40	–	65	95.8
	16.5	4.58	29		3.52	5.5		37	2
	20	5.56	26		3.94	5.5		36	2.7

SPECIFICATIONS TABLE4

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N50/13	18	5	6.4	1450	0.514	0.75	Y90S-4 1.1 kW	61	2.2	Ø 139	65	50	80	65	34
	30	8.33	5.8		0.658	0.75		72	2.4
	36	10	5.2		0.739	1.1		69	2.8
MATRA N50/16	20	5.55	10.3	1450	0.93	1.1	Y90L-4 1.5 kW	60	2.3	Ø 174	65	50	80	65	38
	32	8.89	9.5		1.18	1.5		70	2.4
	38	10.55	8.8		1.3	1.5		70	3
MATRA N50/20	18	5	15.4	1450	1.37	1.5	Y100L1-4 2.2 kW	55	2.2	Ø 214	65	50	80	65	46
	30	8.33	13.5		1.7	2.2		65	2.3
	36	10	11.6		1.86	2.2		61	2.9
MATRA N50/26	20	5.55	25	1450	2.62	3	Y132S-4 5.5 kW	52	2.3	Ø 264	65	50	80	65	63
	32	8.89	22.5		3.27	4		60	2.4
	38	10.55	19.8		3.63	5.5		56.5	3

SPECIFICATIONS TABLE5

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N50/32	24	6.67	36	1450	5	5.5	Y160M-4 11 kW	47	2	Ø 329	65	50	80	65	101
	40	11.11	34		6.38	7.5		58	2.5
	48	13.33	32		7.09	11		59	3.2
MATRAN 50/32A	23	6.39	32.5	1450	4.52	5.5	Y132M-4 7.5 kW	45	2	Ø 315	65	50	80	65	101
	38.5	10.69	30.6		5.73	7.5		56	2.4
	46	12.78	28.7		6.36	7.5		56.5	3
MATRA N50/32B	22	6.11	29.4	1450	4.24	5.5	Y132M-4 7.5 kW	41.5	2	Ø 300	65	50	80	65	101
	36.5	10.14	27.7		5.1	7.5		54	2.3
	44	12.22	26		5.66	7.5		55	2.8

SPECIFICATIONS TABLE6

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N65/13	30	8.33	6.2	1450	0.79	1.1	Y90L-4 1.5 kW	64	2.2	Ø 139	80	65	100	80	39
	50	13.89	5.4		0.98	1.1		75	2.4
	60	16.67	4.7		1.05	1.5		73	2.8
MATRA N65/16	30	8.33	9.8	1450	1.33	2.2	Y100L1-4 2.2 kW	60	2	Ø 174	80	65	100	80	43
	50	13.89	8.8		1.62	2.2		74	2.2
	60	16.66	7.9		1.75	2.2		73.5	2.5
MATRA N65/20	35	9.72	15.3	1450	2.31	3	Y112M-4 4 kW	63	1.9	Ø 214	80	65	125	80	52
	55	15.27	14		2.87	4		73	2
	66	18.33	13.1		3.2	4		73.5	2.3
MATRA N65/26	36	10	24.5	1450	4	5.5	Y132M-4 7.5 kW	60	2	Ø 264	80	65	125	80	81
	60	16.67	22.5		5.25	7.5		70	2.3
	72	20	20.6		5.77	7.5		70	3

SPECIFICATIONS TABLE7

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N65/32	40	11.11	37	1450	7.46	11	Y160L-4 15 kW	54	1.9	Ø 329	80	65	125	80	110
	65	18.06	34		9.56	11		63	2
	78	21.67	31		10.62	15		62	2.5
MATRA N65/32A	37	10.28	33.4	1450	6.73	11	Y160M-4 11 kW	50	1.9	Ø 315	80	65	125	80	110
	62	17.2	30.9		8.54	11		61	2
	74.5	20.69	28		9.47	11		60	2.3
MATRA N65/32B	34	9.44	30.5	1450	6	7.5	Y160M-4 11 kW	47	2	Ø 300	80	65	125	80	110
	56.5	15.69	28		7.3	11		59	2
	68	18.89	25.8		8.1	11		58	2.1
MATRA N80/16	50	13.89	9.9	1450	2.2	3	Y100L2-4 3 kW	61	2.1	Ø 174	100	80	150	100	54
	80	22.22	9		2.55	3		77	2.5
	96	26.67	8.3		2.75	3		79	3.2

SPECIFICATIONS TABLE8

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N80/20	58	16.11	15.5	1450	3.77	5.5	Y132M-4 7.5 kW	7465	2.1	Ø 214	100	80	150	100	70
	95	26.39	14		4.64	7.5		78	2.5
	112	31.11	13		5.15	7.5		77	3.2
MATRA N80/26	58	16.11	23.5	1450	5.8	7.5	Y160-4 11 kW	64	2.1	Ø 264	100	80	150	100	91
	95	26.39	21.5		7.52	11		74	2.5
	112	31.11	20		8.36	11		73	3.2
MATRA N80/32	60	16.67	36	1450	9.65	15	Y180M-4 18.5 kW	61	1.9	Ø 329	100	80	125	100	120
	100	27.78	33		12.66	15		71	2.0
	120	33.33	30		14	18.5		70	2.6
MATRA N80/32A	57.5	15.97	32.4	1450	8.75	11	Y160L-4 15 kW	58	1.9	Ø 315	100	80	125	100	120
	95.5	26.53	29.7		11.2	15		69	2
	114.5	31.81	27		12.38	15		68	2.3
MATRA N80/32B	54.5	15.14	29.3	1450	7.77	11	Y160L-4 15 kW	56	1.9	Ø 300	100	80	125	100	120
	91	25.28	26.8		9.91	15		67	2
	109	30.28	24.5		11.02	15		66	2.3
MATRA N80/40	60	16.67	58	1450	18.96	22	Y200L-4 30 kW	50	2.2	Ø 409	100	80	125	100	161
	100	27.78	53		24.06	30		60	2.5
	120	33.33	48		6.58	30		59	3.4
MATRA N80/40A	58	16.11	53.7	1450	17.67	22	Y200L-4 30 kW	48	2.2	Ø 395	100	80	125	100	161
	96.5	26.81	48.9		22.16	30		58	2.4
	116	32.22	44.4		24.6	30		57	3.2
MATRA N80/40B	56	15.56	49.4	1450	16.38	22	Y200L-4 30 kW	46	2.2	Ø 380	100	80	125	100	161
	93	25.83	45		20.35	30		56	2.4
	111.5	30.97	40.9		22.58	30		55	3
MATRA N100/20	90	25	15	1450	5.25	7.5	Y160M-4 11 kW	70	2.2	Ø 214	125	100	200	125	85
	142	39.44	13		6.36	7.5		79	2.5
	170	47.22	11.5		6.91	11		77	3.4
MATRA N100/26	95	26.39	24.5	1450	9.19	11	Y160M-4 15 kW	69	2.3	Ø 264	125	100	200	125	106
	148	41.11	22		11.37	15		78	2.6
	175	48.61	20		12.54	15		76	3.5
MATRA N100/32	81	22.5	37.5	1450	12.73	15	Y180L-4 22 kW	65	2	Ø 329	125	100	150	125	134
	135	37.5	34		16.7	22		75	2
	162	45	30		18.38	22		72	2.3
MATRA N100/32A	77.5	21.53	33.5	1450	11.5	15	Y180L-4 22 kW	61.5	2	Ø 315	125	100	150	125	134
	130	36.1	30.5		15.2	22		71	2
	155	43.06	27		16.64	22		68.5	2.18
MATRA N100/32B	73.5	20.42	30.5	1450	10.44	15	Y180M-4 18.5 kW	58.5	2	Ø 300	125	100	150	125	134
	123	34.17	27.5		13.55	18.5		68	2
	147.5	41	24.5		14.92	18.5		66	2.1
MATRA N100/40	90	25	57	1450	24.09	30	Y225M-4 45 kW	58	1.7	Ø 409	125	100	150	125	174
	150	41.67	52		31.24	37		68	2
	180	50	48.5		34.96	45		68	2.7
MATRA N100/40A	87	24.17	52.5	1450	22.22	30	Y225S-4 37 kW	56	1.7	Ø 395	125	100	150	125	174
	145	40.28	48.2		28.84	37		66	2
	174	48.33	44.5		31.75	37		66.4	2.5
MATRA N100/40B	87	23.33	48.5	1450	20.54	30	Y225S-4 37 kW	54	1.7	Ø 380	125	100	150	125	174
	139.5	38.75	44.5		26.42	37		64	1.9
	167.5	46.53	41.2		29.37	37		64	2.4
MATRA N125/20	115	32	14.2	1450	7.3	11	Y160M-4 11 kW	61	2.6	Ø 214	150	125	200	150	106
	190	53	12.5		8.55	11		76	3.5
	230	63.6	11		9.03	11		76	3.0
MATRA N125/26	144	40	23.5	1450	13.17	18.5	Y180L-4 22 kW	70	2.3	Ø 264	150	125	200	150	115
	240	66.67	21		16.95	22		81	2.5
	288	80	18.8		18.9	22		78	3.2
MATRA N125/26A	139	38.61	21.3	1450	12.03	15	Y180L-4 22 kW	67	2.3	Ø 255	150	125	200	150	115
	232	64.44	19.2		15.35	22		79	2.5
	278.5	77.36	17		16.96	22		76	3
MATRA N125/26B	134	37.22	19.7	1450	11.23	15	Y180M-4 18.5 kW	64	2.3	Ø 245	150	125	200	150	115
	223	61.94	17.5		13.98	18.5		76	2.4
	267.5	74.31	15.7		15.46	18.5		74	2.8
MATRA N125/32	120	33.3	35.7	1450	17.36	22	Y200L-4 30 kW	66	2.1	Ø 329	150	125	200	150	163
	200	55.6	82		22.35	30		78	2
	240	66.7	29.5		24.72	30		78	2.7
MATRA N125/32A	115	31.94	31.5	1450	15.78	18.5	Y200L-4 30 kW	62.5	2.15	Ø 315	150	125	200	150	163
	191	53.06	29		20.11	30		75	1.95
	229	63.61	26.5		22.2	30		74.5	2.4
MATRA N125/32B	109	30.28	28.5	1450	14.1	18.5	Y180L-4 22 kW	60	2.2	Ø 300	150	125	200	150	163
	182	50.56	26		17.77	22		72.5	2
	218.5	60.7	24		19.7	22		72.5	2.2
MATRA N125/40	144	40	58	1450	34.46	45	Y280S-4 75 kW	66	2.2	Ø 409	150	125	200	150	181
	245	68.05	52		45.65	55		76	2.4
	300	83.33	46		52.2	75		72	3.2
MATRA N125/40A	139	38.61	53.5	1450	31.4	37	Y250M-4 55 kW	64.5	2.2	Ø 395	150	125	200	150	181
	236.5	65.7	48		41.78	55		74	2.4
	289	80.42	42.5		47.87	55		70	3
MATRA N125/40B	133.5	37.08	49.5	1450	18.56	37	Y250M-4 55 kW	63	2.2	Ø 380	150	125	200	150	181
	227.5	63.2	44		37.6	45		72.5	2.3
	278.5	77.36	39		43.18	55		68.5	2.8

SPECIFICATIONS TABLE9

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N150/20	216	60	14.4	1450	12.1	15	Y180M-4 18.5 kW	70	3.0	Ø 220	200	150	250	200	156
	360	100	12.2		14.9	18.5		80	3.5
	424	118	10.3		15.47	18.5		77	4.0
MATRA N150/26	194	54	23	1450	17.14	22	Y200L-4 30 kW	71	2.7	Ø 264	200	150	250	200	148
	324	90	21		22.87	30		81	3.0
	414	115	16.8		25.59	30		74	3.3
MATRA N150/32	230	63.89	36	1450	30.89	37	Y250M-4 55 kW	73	2.8	Ø 329	200	150	250	200	170
	370	102.78	33		40.55	45		82	3.2
	445	123.61	30		44.88	55		81	3.6
MATRA N150/32A	220	61.11	32.5	1450	27.62	37	Y225M-4 45 kW	70.5	2.8	Ø 315	200	150	250	200	170
	354	98.33	30		36.38	45		79.5	3.1
					39.9	45		78.5	3.5
	426	118.33	27
MATRA N150/32B	209.5	58.2	29.5	1450	24.4	30	Y225S-4 37 kW	69	2.8	Ø 300	200	150	250	200	390
	337.5	93.75	27		31.8	37		78	3
	405.5	112.64	24.5		35.14	37		77	3.3
MATRA N150/40	240	66.67	54	1450	51.15	75	Y280M-4 90 kW	69	2.8	Ø 409	200	150	250	200	390
	385	106.94	50		66.36	75		79	3.2
	460	127.78	46		73.88	90		78	3.6
MATRA N150/40A	232	64.44	50	1450	46.8	55	Y280S-4 75 kW	67.5	2.8	Ø 395	200	150	250	200	390
	372	103.33	46		60.5	75		77	3.2
	444	123.33	42.5		67.62	75		76	3.6
MATRA N150/40B	223	61.94	46	1450	43.32	55	Y280S-4 75 kW	66	2.8	Ø 380	200	150	350	200	390
	357.5	99.3	42		54.2	75		75.5	3.1
	427.5	118.75	39		61	75		74.5	3.5
MATRA N200/26	360	100	20.5	1450	31.4	55	Y250M-4 55 kW	64	2.7	Ø 264	250	200	300	300	230
	600	166.7	19		38.8			80	2.8
	720	200	17		42.2			79	3.6
MATRA N200/32	378	105	33	1450	46.5	55	Y280S-4 75 kW	73	2.7	Ø 329	250	200	300	300	251
	630	175	27		54.5	75		85	3.8
	756	210	20		56.4	75		73	3.9
MATRA N200/32A	360	100	30	1450	40.3	45	Y250M-4 55 kW	73	2.6	Ø 315	250	200	300	300	251
	600	167	25		50.5	55		81	3.7
	720	200	19		51	55		73	3.8
MATRA N200/32B	324	90	25.5	1450	33.1	37	Y225M-4 45 kW	68	2.5	Ø 3285	250	200	300	300	251
	540	150	21		40.1	45		77	3.6
	648	180	16.6		41.3	45		71	3.7
MATRA N200/40	390	108	55.5	1450	76.5	90	Y315M-4 132 kW	77	3.0	Ø 409	250	200	300	300	295
	650	181	48.5		100	110		86	3.8
	780	217	41.5		109	132		81	4.5
MATRA N200/40A	378	105	51	1450	68.2	75	Y315S-4 110 kW	77	2.9	Ø 395	250	200	300	300	295
	630	175	44		88.8	110		85	3.8
	756	210	37		96.4	110		79	4.4
MATRA N200/40B	360	100	47	1450	60.6	75	Y280M-4 90 kW	76	2.9	Ø 380	250	200	300	300	295
	600	167	40.5		78.8	90		84	3.7
	720	200	33.5		84.2	90		78	4.3
MATRA N200/40C	324	90	39	1450	46.5	55	Y280S-4 75 kW	74	2.9	Ø 350	150	200	300	300	295
	540	150	32.5		58.3	75		82	3.6
	648	180	27		62.7	75		76	4.1
MATRA N250/32	504	140	32	1450	62.7	75	Y280M-4 90 kW	70	3.2	Ø 329	300	250	350	350	311
	840	233	29		77	90		86	3.4
	1008	280	23		78.5	90		80	5.5
MATRA N250/32A	480	133	29	1450	54.1	75	Y280S-4 75 kW	70	3.0	Ø 315	300	250	350	350	311
	800	222	26		66.6	75		85	3.2
	960	267	21		68.7	75		80	4.8
MATRA N250/32B	432	120	24	1450	41	45	Y250M-4 55 kW	69	2.8	Ø 285	300	250	350	350	311
	720	200	21		49.6	55		83	3.1
	864	240	17		50.6	55		79	3.7
MATRA N250/40	540	150	52.5	1450	103	132	Y315L1-4 160 kW	75	3.3	Ø 409	300	250	350	350	390
	900	250	48.5		135.1	160		88	4.8
	1080	300	40		148.9	160		81	6.3
MATRA N250/40A	504	140	45	1450	81.3	90	Y315M-4 132 kW	76	3.2	Ø 395	300	250	350	350	390
	840	233	40.5		105.3	132		88	4.7
	1008	280	34.5		112.7	132		84	6.2
MATRA N250/40B	456	127	38	1450	62.9	75	Y315S-4 110 kW	75	3.0	Ø 380	300	250	350	350	390
	760	211	33.5		78.8	90		88	4.5
	912	253	28.5		84.3	110		84	5.8
MATRA N250/40C	432	120	35	1450	55.6	75	Y280M-4 90 kW	74	3.0	Ø 355	300	250	350	350	390
	720	200	31		70	90		87	4.4
	864	240	27		76.5	90		83	5.5

SPECIFICATIONS TABLE A10

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N32/13	9	2.5	24.5	2900	1.23	1.5	Y90L-2 2.2 kW	49	1.8	Ø 139	50	32	65	50	27.5
	15	4.17	22		1.47	2.2		61	2.0
	18	5	20		1.58	2.2		62	2.5
MATRA N32/13A	9	2.36	21.2	2900	1.04	1.5	Y90L-2 2.2 kW	47	1.8	Ø 130	50	32	65	50	27.5
	15	3.89	19		1.23	1.5		59	1.95
	18	4.72	17.2		1.31	2.2		60.5	2.3
MATRA N32/13B	7.8	2.17	18	2900	0.89	1.1	Y90S-2 1.5 kW	43	1.8	Ø 120	50	32	65	50	27.5
	13	3.61	16.2		1.01	1.1		56.5	1.88
	15.5	4.31	14.7		1.07	1.5		58	2.08
MATRA N32/16	11	3.05	40	2900	2.49	3	Y132S1-2 5.5 kW	48	1.9	Ø 174	50	32	65	50	35
	18	5	37		3.18	4		57	2.0
	22	6.11	34		3.51	5.5		58	2.6
MATRA N32/16A	10.5	2.92	35.7	2900	2.22	3	Y112M-2 4 kW	46	1.9	Ø 165	50	32	65	50	35
	17	4.72	33		2.78	3		55	1.95
	21	5.83	30		3.06	4		56	2.4
MATRAN32/16B	9.8	2.72	31.4	2900	1.93	2.2	Y112M-2 4 kW	43.5	1.9	Ø 155	50	32	65	50	35
	16	4.44	29		2.38	3		53	1.95
	19.5	5.42	26.5		2.61	4		54	2.2
MATRA N32/20	11	3.05	63	2900	4.71	5.5	Y160M1-2 11 kW	40	1.8	Ø 214	50	32	65	50	41
	18	5	59		5.9	7.5		49	2.0
	22	6.11	55.5		6.52	11		51	2.3
MATRA N32/20A	10.5	2.92	57.2	2900	4.24	5.5	Y132S2-2 7.5 kW	38.6	1.8	Ø 205	50	32	65	50	41
	17	4.72	54		5.26	7.5		47.5	1.95
	21	5.83	50.2		5.79	7.5		49.5	2.2
MATRA N32/20B	10	2.78	51.5	2900	3.69	5.5	Y132S2-2 7.5 kW	38	1.8	Ø 195	50	32	65	50	41
	16.5	4.58	48		4.5	7.5		46.8	1.9
	20	5.56	45		5.03	7.5		48.8	2.15
MATRA N32/26	14	3.89	99	2900	11.27	15	Y160L-2 18.5 kW	33.5	2.1	Ø 264	50	32	65	50	59
	22	6.11	95		13.23	15		43	2.2
	26	7.22	92		14.47	18.5		45	2.6
MATRA N32/26A	13.5	3.75	91.8	2900	10.75	15	Y160M2-2 15 kW	31.4	2.1	Ø 255	50	32	65	50	59
	21	5.83	88		12.58	15		40	2.2
	25	6.94	85		13.6	15		42.5	2.5
MATRA N32/26B	13	3.61	84.5	2900	9.97	15	Y160M2-2 15 kW	30	2.15	Ø 245	50	32	65	50	59
	20.5	5.69	81		11.74	15		38.5	2.16
	24	6.67	78.4		12.63	15		40.6	2.38

SPECIFICATIONS TABLE A11

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N40/13	18	5	25.5	2900	2.08	2.2	Y112M-2 4 kW	60	1.8	Ø 139	65	40	80	65	30
	30	8.33	23.5		2.74	3		70	2.0
	36	10	21.5		3.03	4		69.5	2.4
MATRA N40/13A	16.8	4.67	22	2900	1.8	2.2	Y112M-2 4 kW	56	1.8	Ø 130	65	40	80	65	30
	28	7.78	20.2		2.3	3		67	2.0
	33.6	9.33	18.8		2.56	4		67.2	2.25
MATRA N40/13B	15.5	4.31	18.5	2900	1.48	1.5	Y100L-2 3 kW	53	1.8	Ø 120	65	40	80	65	30
	26	7.22	17		1.85	2.2		65	1.9
	31	8.61	15.5		2.01	3		65	2.15
MATRA N40/16	18	5	39.5	2900	3.65	5.5	Y132S2-2 7.5 kW	53	2.1	Ø 174	65	40	80	65	36
	30	8.33	35		4.47	5.5		64	2.5
	36	10	31.5		4.9	7.5		63	3.6
MATRA N40/16A	17	4.72	34.8	2900	3.16	4	Y132S1-2 5.5 kW	51	2.1	Ø 165	65	40	80	65	36
	28.5	7.92	30.5		3.82	5.5		62	2.5
	34	9.44	27.6		4.19	5.5		61	3.25
MATRA N40/16B	16	4.44	30.5	2900	2.77	4	Y112M-2 4 kW	48	2.05	Ø 155	65	40	80	65	36
	26.5	7.4	27		3.29	4		59.5	2.4
	32	8.89	24		3.55	4		59	2.9
MATRA N40/20	18	5	63	2900	6.3	7.5	Y160M1-2 11 kW	49	1.8	Ø 214	65	40	80	65	44
	30	8.33	58		8.17	11		58	2.0
	36	10	53		8.96	11		58	2.7
MATRA N40/20A	17	4.72	57.4	2900	5.72	7.5	Y160M1-2 11 kW	46.4	1.8	Ø 205	65	40	80	65	44
	29	8.06	52.4		7.46	11		55.5	1.95
	34.5	9.58	48		8.05	11		56	2.45
MATRA N40/20B	16.5	4.58	51.8	2900	5.28	5.5	Y160M1-2 11 kW	44	1.8	Ø 195	65	40	80	65	44
	27.5	7.64	47.5		6.71	7.5		53	1.9
	33	9.17	43.3		7.24	11		53.8	2.2
MATRA N40/26	20	5.56	97	2900	13.22	15	Y180M-2 22 kW	40	1.8	Ø 264	65	40	80	65	61
	33	9.17	92		16.22	18.5		51	2.0
	40	11.11	87		17.88	22		53	2.5
MATRA N40/26A	19.5	5.42	89	2900	12.28	15	Y160L-2 18.5 kW	38.5	1.8	Ø 255	65	40	80	65	61
	32	8.89	84		15.09	18.5		48.5	1.95
	38.5	10.7	79.5		16.35	18.5		51	2.35
MATRA N40/26B	18.5	5.14	82	2900	11.17	15	Y160L-2 18.5 kW	37	1.8	Ø 245	65	40	80	65	61
	30.5	8.47	78		13.78	15		47	1.9
	37	10.28	73		15.02	18.5		49	2.2

SPECIFICATIONS TABLE A12

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N50/13	36	10	25.5	2900	3.85	5.5	Y132S2-2 7.5 kW	65	2.5	Ø 139	65	50	80	80	34
	60	16.67	23		4.95	5.5		76	3.2
	72	20	20.5		5.36	7.5		75	4.0
MATRA N50/13A	33.5	9.31	22	2900	3.19	4	Y132S1-2 5.5 kW	63	2.5	Ø 130	65	50	80	80	34
	56	15.56	19.5		4.02	5.5		74	3.1
	67.5	18.75	17.2		4.33	5.5		73	3.6
MATRA N50/13B	31	8.61	18.5	2900	2.56	3	Y132S1-2 5.5 kW	61	2.5	Ø 120	65	50	80	80	34
	52	14.44	16.5		3.24	4		72	2.9
	62	17.22	14.8		3.52	5.5		71	3.3
MATRA N50/16	40	11.11	41.5	2900	7.06	11	Y160M1-2 11 kW	64	2.5	Ø 174	65	50	80	80	38
	65	18.05	38		9.09	11		74	3.5
	78	21.67	35		10.05	11		74	4.2
MATRA N50/16A	38	10.56	37	2900	6.19	7.5	Y160M1-2 11 kW	62	2.5	Ø 165	65	50	80	80	38
	61.5	17.1	33.8		7.9	11		72	3.3
	74	20.6	31.2		8.75	11		72	3.9
MATRA N50/16B	35.5	9.86	32.5	2900	5.24	5.5	Y160M1-2 11 kW	60	2.35	Ø 155	65	50	80	80	38
	58	16.11	29.5		6.66	11		70	3.1
	69.5	19.31	27		7.36	11		69.5	3.7
MATRA N50/20	36	10	62	2900	10.48	15	Y160L-2 18.5 kW	58	2.5	Ø 214	65	50	80	80	46
	60	16.67	56		13.07	15		70	3.2
	72	20	50		14.42	18.5		68	4.0
MATRA N50/20A	34.5	9.6	56	2900	9.25	11	Y160M2-2 15 kW	57	2.5	Ø 205	65	50	80	80	46
	57.5	16	50.5		11.5	15		69	3.1
	69	19.2	45		12.64	15		67	3.75
MATRA N50/20B	33	9.1	50.6	2900	8.13	11	Y160M2-2 15 kW	55.5	2.5	Ø 195	65	50	80	80	46
	54.5	15.1	45.6		10	15		67.5	3.0
	65.5	18.2	40.5		11	15		66	3.5
MATRA N50/26	40	11.11	100	2900	20.17	30	Y200L2-2 37 kW	54	2.5	Ø 264	65	50	80	80	63
	65	18.05	91		25.97	30		62	3.5
	78	21.67	82		29.03	37		66	4.2
MATRA N50/26A	38.5	10.67	92.5	2900	18.29	22	Y200L1-2 30 kW	53	2.4	Ø 255	65	60	80	80	63
	63	17.5	84		23.63	30		61	3.3
	75.5	20.97	75.6		26.34	30		59	3.9
MATRA N50/26B	37	10.28	85.5	2900	16.57	18.5	Y200L1-2 30 kW	52	2.3	Ø 245	65	60	80	80	63
	60.5	16.81	77.5		21.29	30		60	3.2
	72.5	20.14	69.8		23.76	30		58	3.9

SPECIFICATIONS TABLE A13

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N65/13	60	16.67	25	2900	6.1	7.5	Y160M1-2 11 kW	67	3.0	Ø 139	80	65	100	100	39
	100	27.78	22		7.68	11		78	3.5
	120	33.33	19		8.38	11		74	4.5
MATRA N65/13A	56	15.56	21.1	2900	5.03	7.5	Y160M1-2 11 kW	64	3.0	Ø 130	80	65	100	100	39
	93.5	26	16		5.83	11		70	3.5
	112.5	31.25	12.5		6.49	11		59	4.1
MATRA N65/13B	52	14.44	18	2900	4.12	5.5	Y132S2-2 7.5 kW	62.5	3.0	Ø 120	80	65	100	100	39
	86.5	24	13.7		4.88	7.5		66	3.3
	104	28.9	10.6		5.43	7.5		57	3.75
MATRA N65/16	60	16.67	39	2900	10.28	15	Y160L-2 18.5 kW	62	3.6	Ø 174	80	65	100	100	43
	100	27.78	35		12.7	15		75	4.2
	120	33.33	32		13.94	18.5		75	5.2
MATRA N65/16A	57	15.83	34.5	2900	8.92	11	Y160M2-2 15 kW	60	3.6	Ø 165	80	65	100	100	43
	95	26.4	31		11	15		73	4.1
	114	31.7	28		11.92	15		73	4.8
MATRA N65/16B	53.5	14.86	30	2900	7.54	11	Y160M1-2 11 kW	58	3.6	Ø 155	80	65	100	100	43
	89	24.72	27		9.55	11		71	3.95
	107	29.72	24.5		10	11		71	4.5
MATRA N65/20	66	18.33	63	2900	17.97	22	Y200L1-2 30 kW	63	3.0	Ø 214	80	65	125	100	70
	110	30.55	57		23.07	30		74	3.9
	132	36.67	52		25.09	30		74.5	5.3
MATRA N65/20A	63	17.5	57	2900	15.77	18.5	Y200L1-2 30 kW	62	3.0	Ø 205	80	65	125	100	70
	105.5	29.31	51		20.88	30		73	3.75
	126.5	35.14	47		22.03	30		73.5	4.85
MATRA N65/20B	60	16.7	51.5	2900	13.8	18.5	Y200L1-2 30 kW	61	3.0	Ø 195	80	65	125	100	70
	100	27.78	46.5		17.59	22		72	3.6
	120	33.33	42.5		19.16	30		72.5	4.4
MATRA N65/26	72	20	97	2900	29.5	37	Y250M-2 55 kW	64.5	3.3	Ø 264	80	65	125	100	81
	120	33.33	89		39.84	45		73	4.5
	144	40	83		44.59	55		73	5.4
MATRA N65/25A	69.5	19.31	90	2900	26.21	37	Y225M-2 45 kW	65	3.25	Ø 255	80	65	125	100	81
	116	32.22	82.5		36.19	45		72	4.4
	139	38.61	77		40.48	45		72	4.95
MATRA N65/26B	67	18.61	83	2900	23.66	30	Y225M-2 45 kW	64	3.2	Ø 245	80	65	125	100	81
	111.5	31	76		32.53	37		71	4.25
	133.5	37.1	71		36.6	45		70.5	4.95

SPECIFICATIONS TABLE A14

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
N80/16	100	27.78	39	2900	15.85	18.5	Y200L1-2 30 kW	69	3.3	Ø 174	100	80	150	125	54
	162	45	35		19.3	22		80	4.0
	195	54.17	31.5		21.18	30		79	5.0
N80/16A	95	26.39	34.5	2900	13.73	18.5	Y180M-2 22 kW	65	3.3	Ø 165	100	80	150	125	54
	153.5	42.64	31		16.61	18.5		78	3.85
	185	51.39	28		18.32	22		77	4.6
N80/16B	89	24.72	30.5	2900	11.73	15	Y160L-2 18.5 kW	63	3.25	Ø 155	100	80	150	125	54
	144.5	40.14	27.2		14.08	15		76	3.7
	174	48.33	24.5		15.48	18.5		75	4.3

SPECIFICATIONS TABLE A15

Model	Capacity Q		Head H	Speed n	Power P (kW)		Motor supplied	Eff. η	NPSHr	Impeller diameter	Pump nozzle (mm)		Tape pipe diameter (mm)		Weight
Model	m³/h	L/s	(m)	(rpm)	Shaft	Motor	(kW)	(%)	(m)	(mm)	In	Out	In	Out	(kg)
MATRA N80/20	115	31.94	61	2900	27.29	37	Y225M-2 45 kW	70	4	Ø 214	100	80	150	125	70
	190	52.78	55		35.57	37		80	5.1
	225	62.5	50		38.78	45		79	6.2
MATRA N80/20A	110	30.56	55.5	2900	24.1	30	Y200L2-2 37 kW	69	4	Ø 205	100	80	200	125	70
	182	50.56	50		31.37	37		79	4.9
	215.5	59.36	45.5		34.23	37		78	5.35
MATRA N80/20B	105	29.17	50	2900	21.03	30	Y200L2-2 37 kW	68	4	Ø 195	100	80	150	125	70
	173	48.06	45		24.03	30		78	4.7
	205	56.94	41		29.72	37		77	5.5
MATRA N80/26	115	31.94	96	2900	45.5	55	Y280S-2 75 kW	66	4	Ø 264	100	80	150	125	91
	190	52.78	86		57.8	75		77	5.4
	225	62.5	79		64.5	75		75	6.5
MATRA N80/26A	111	30.83	89	2900	41.39	55	Y280S-2 75 kW	65	3.95	Ø 255	100	80	150	125	91
	183.5	50.97	79.3		52.47	75		76	5.2
	217.5	60.42	73		58.43	75		74	6.25
MATRA N80/26B	106.5	29.58	82	2900	37.16	45	Y280S-2 75 kW	64	3.9	Ø 245	100	80	150	125	91
	176.5	49.03	73.5		47.11	55		75	5
	209	58.06	67.5		52.63	75		73	6
MATRA N100/16	151.2	42	33	2900	22.65	30	Y200L2-2 37 kW	60	5	Ø 174	125	100	200	150	174
	252	70	27		25.74	37		72	5
	302.4	84	22.4		26.3	37		70	5.5
MATRA N100/20	180	50	59	2900	41.32	55	Y280S-2 75 kW	70	4	Ø 214	125	100	200	150	85
	295	79.17	52		50.14	75		80.5	5.3
	340	94.44	44		54.68	75		74.5	6.3
MATRA N100/20A	172.5	47.92	52.5	2900	35.75	45	Y250M-2 55 kW	69	3.95	Ø 205	125	100	200	150	85
	273	75.83	46		43.02	55		79.5	4.9
	325.5	90.42	38		45.83	55		73.5	5.95
MATRA N100/20B	164	45.56	47	2900	30.87	37	Y225M-2 45 kW	68	3.9	Ø 195	125	100	200	150	85
	260	72.22	40		36.08	45		78.5	4.8
	310	86.11	32.5		37.85	45		72.5	5.6
MATRA N100/26	190	52.78	97	2900	71.7	90	Y315S-2 110 kW	70	3.8	Ø 264	125	100	200	150	115
	295	81.94	85		87.54	100		78	5.2
	350	92.22	75		97.93	110		73	6.5
MATRA N100/26A	183.5	50.97	89	2900	64.45	75	Y315S-2 110 kW	69	3.75	Ø 255	125	100	200	150	115
	285	79.17	78		78.63	90		77	5
	338	93.89	68.5		87.57	100		72	6.2
MATRA N100/26B	177	49.17	82	2900	58.13	75	Y280M-2 90 kW	68	3.7	Ø 245	125	100	200	150	115
	274	76.11	71.5		70.2	90		76	4.8
	325	90.28	63		78.54	100		71	5.9
MATRA N125/20	237.6	66	54.5	2900	59.3	75	Y280M-2 90 kW	59.5	7	Ø 214	150	125	250	200	106
	360	100	49		66.3	90		72.5	7.2
	475	132	40		70.9	90		73	7
MATRA N125/20A	228	63.2	49.5	2900	53.0	75	Y220S-2 75 kW	58.5	7	Ø 205	150	125	250	200	106
	345	95.8	44		58.0	75		71.5	7.1
	455	126	35.3		61	75		72	6.85

ขอใบเสนอราคา/Request a quote

ชื่อ/Name
First
อีเมล์/Email*
บริษัท/Company*
ที่อยู่(สำหรับออกใบเสนอราคา)/Address*
ที่อยู่/Address แขวง/ตำบล/Sub-district เขต/อำเภอ/District จังหวัด/Province รหัสไปรษณีย์/Postal Code ประเทศ/Country
เบอร์โทรศัพท์/Phone number
Hidden
Page
สอบถามข้อมูลเพิ่มเติม/Ask us any questions
CAPTCHA
