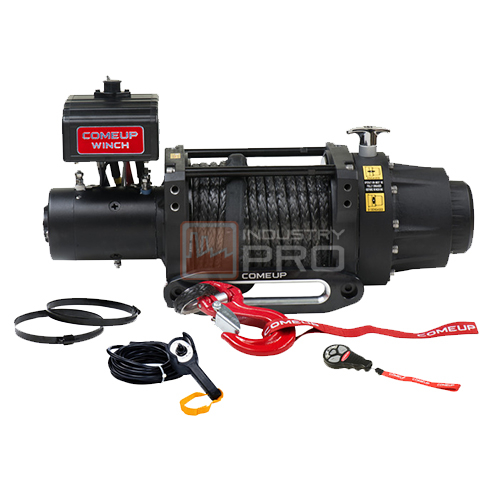

Seal Gen2 9.5,Seal Gen2 9.5i,Seal Gen2 9.5s,Seal Gen2 9.5si,Seal Gen2 9.5rs,Seal Gen2 9.5rsi,Seal Gen2 12.5,Seal Gen2 12.5s,Seal Gen2 12.5rs,Seal Gen2 16.5rs,Seal Gen2 16.5s
| Specifications | COME UP Seal Gen2 9.5 | COME UP Seal Gen2 9.5i | COME UP Seal Gen2 9.5s | COME UP Seal Gen2 9.5si | COME UP Seal Gen2 9.5rs | COME UP Seal Gen2 9.5rsi |
|---|---|---|---|---|---|---|
| Part number | PN 295950 | PN 295980 | PN 295990 | PN 295880 | PN 295850 | PN 295860 |
| Rated line pull | 4,309 kg / 9,500 lb single line | 4,309 kg / 9,500 lb single line | 4,309 kg / 9,500 lb single line | 4,309 kg / 9,500 lb single line | 4,309 kg / 9,500 lb single line | 4,309 kg / 9,500 lb single line |
| Motor | 3,730 w / 5.0 hp 12V series wound | 3,730 w / 5.0 hp 12V series wound | 3,730 w / 5.0 hp 12V series wound | 3,730 w / 5.0 hp 12V series wound | 3,730 w / 5.0 hp 12V series wound | 3,730 w / 5.0 hp 12V series wound |
| Gear ratio | 3-stage planetary 159:1 | 3-stage planetary 159:1 | 3-stage planetary 159:1 | 3-stage planetary 159:1 | 3-stage planetary 159:1 | 3-stage planetary 159:1 |
| Clutch (freespooling) | Rotating ring gear | Rotating ring gear | Rotating ring gear | Rotating ring gear | Rotating ring gear | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) | Automatic, full load CBS (Cone Brake Structure) | Automatic, full load CBS (Cone Brake Structure) | Automatic, full load CBS (Cone Brake Structure) | Automatic, full load CBS (Cone Brake Structure) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum | Aluminum die cast housings with steel drum | Aluminum die cast housings with steel drum | Aluminum die cast housings with steel drum | Aluminum die cast housings with steel drum | Aluminum die cast housings with steel drum |
| Drum size | 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7") | 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7") | 63.5 x 227x 273 mm (2.5” x 8.9” x 10.7") | 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7") | 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7") | 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7") |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord | Both built-in digital signal two ways wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord | Both built-in digital signal two ways wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Rope type | Galvanized aircraft A7 x 19 wire rope | Galvanized aircraft A7 x 19 wire rope | Synthetic rope | Synthetic rope | Synthetic rope | Synthetic rope |
| Rope size | 8.7 mm x 30.5 m (11/32” x 100’) | 8.7 mm x 30.5 m (11/32” x 100’) | 10 mm x 30.5 m (3/8” x 100’) | 10 mm x 30.5 m (3/8” x 100’) | 10 mm x 30.5 m (3/8” x 100’) | 10 mm x 30.5 m (3/8” x 100’) |
| Mounting bolts pattern | 254 x 114 mm (10” x 4.5”) | 254 x 114 mm (10” x 4.5”) | 254 x 114 mm (10” x 4.5”) | 254 x 114 mm (10” x 4.5”) | 254 x 114 mm (10” x 4.5”) | 254 x 114 mm (10” x 4.5”) |
| Mounting | Foot forward or foot down mounting workable | Foot forward or foot down mounting workable | Foot forward or foot down mounting workable | Foot forward or foot down mounting workable | Foot forward or foot down mounting workable | Foot forward or foot down mounting workable |
| Finish | Matte black powder-coated | Matte black powder-coated | Matte black powder-coated | Matte black powder-coated | Matte black powder-coated | Matte black powder-coated |
| Winch weight (including rope) | 36.2 kg / 79.8 lb | 38.5 kg / 85 lb | 28.5 kg / 62.5 lb | 36.2 kg / 79.8 lb | 28.5 kg / 62.8 lb | 36.2 kg / 79.8 lb |
| Gross weight | 51.3 kg / 113 lb | 52.6 kg / 116 lb | 40 kg / 88 lb | 40.8 kg / 90 lb | 40 kg / 88 lb | 40.8 kg / 90 lb |
| Box dimension, (L x D x H) | 682 x 209 x 430 mm (26.9" x 8.2" x 16.9") | 682 x 209 x 430 mm (26.9" x 8.2" x 16.9") | 682 x 209 x 430 mm (26.9" x 8.2" x 16.9") | 682 x 209 x 430 mm (26.9" x 8.2" x 16.9") | 682 x 209 x 430 mm (26.9" x 8.2" x 16.9") | 682 x 209 x 430 mm (26.9" x 8.2" x 16.9") |
| Specifications | COME UP Seal Gen2 12.5 | COME UP Seal Gen2 12.5s | COME UP Seal Gen2 12.5rs | COME UP Seal Gen2 16.5 | COME UP Seal Gen2 16.5rs | COME UP Seal Gen2 16.5s |
|---|---|---|---|---|---|---|
| Part number | PN 295730 | PN 295750 | PN 295780 | PN 295615 (12V) / PN 295628 (24V) | PN 295655 (12V) / PN 295667 (24V) | PN 295635 (12V) / PN 295646 (24V) |
| Rated line pull | 5,670 kg / 12,500 lb single line | 5,670 kg / 12,500 lb single line | 5,670 kg / 12,500 lb single line | 7,484 kg / 16,500 lb single line | 7,484 kg / 16,500 lb single line | |
| Line speed ( 1st layer) | 5.5 mpm / 18 fpm 50A at 12V, 7.5 mpm / 24.7 fpm 25A at 24V no load | 5.6 mpm / 18.4 fpm 50A at 12V, 7.6 mpm / 24.7 fpm 25A at 24V no load | 5.6 mpm / 18.4 fpm 50A at 12V, 7.6 mpm / 24.7 fpm 25A at 24V no load | |||
| 1.4 mpm / 4.6 fpm 355A at 12V, 245A at 24V full load | 1.4 mpm / 4.6 fpm 355A at 12V, 1.4 mpm / 4.6 fpm 245A at 24V full load | |||||
| Motor | 3,730 w / 5.0 hp 12V series wound | 3,730 w / 5.0 hp 12V series wound | 3,730 w / 5.0 hp 12V series wound | 4,325 w / 5.8 hp 12V series wound | 4,325 w / 5.8 hp 12V series wound | |
| 4,474 w / 6.0 hp 24V series wound | 4,474 w / 6.0 hp 24V series wound | 4,474 w / 6.0 hp 24V series wound | ||||
| Gear ratio | 3-stage planetary 225:1 | 3-stage planetary 225:1 | 3-stage planetary 225:1 | |||
| Gear train | 3-stage planetary 343:1 | 3-stage planetary 343:1 | 3-stage planetary 343:1 | |||
| Clutch (freespooling) | Rotating ring gear | Rotating ring gear | Rotating ring gear | Rotating ring gear | Rotating ring gear | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) | Automatic, full load CBS (Cone Brake Structure) | Automatic, full load CBS (Cone Brake Structure) | Automatic, full load CBS (Cone Brake Structure) | Automatic, full load CBS (Cone Brake Structure) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum | Aluminum die cast housings with steel drum | Aluminum die cast housings with steel drum | Aluminum die cast housings with steel drum | Aluminum die cast housings with steel drum | Aluminum die cast housings with steel drum |
| Drum size | 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7") | 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7") | 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7") | 89 mm x 204 mm (3.5" x 8") | 89 mm x 204 mm (3.5" x 8") | 89 mm x 204 mm (3.5" x 8") |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord | Both built-in digital signal two ways wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Rope type | Galvanized aircraft A7 x19 wire rope | Synthetic rope | Synthetic rope | 6 × 29 - IWRC | Synthetic rope | Synthetic rope |
| Rope size | 254 x 114 mm (10” x 4.5”) | 11 mm x 25 m (7/16” x 82’) | 11 mm x 25 m (7/16” x 82’) | 11.1 mm x 27.4 m (7/16” x 90’) | 12 mm x 25 m (1/2” x 82’) | 12 mm x 25 m (1/2” x 82’) |
| Mounting bolts pattern | 254 x 114 mm (10” x 4.5”) | 254 x 114 mm (10” x 4.5”) | 254 x 114 mm (10” x 4.5”) | 254 mm x 114.3 mm (10” x 4.5”) | 254 mm x 114.3 mm (10” x 4.5”) | 254 mm x 114.3 mm (10” x 4.5”) |
| 254 mm x 165 mm (10" x 6.5") | 254 mm x 165 mm (10" x 6.5") | 254 mm x 165 mm (10" x 6.5") | ||||
| Mounting | Foot forward mounting only | Foot forward mounting only | Foot forward mounting only | Foot forward mounting only | Foot forward mounting only | Foot forward mounting only |
| Finish | Matte black powder-coated | Matte black powder-coated | Matte black powder-coated | |||
| Winch weight (including rope) | 37.7 kg / 83.1 lb | 29.8 kg / 65.7 lb | 29.8 kg / 65.7 lb | 61 kg / 135 lb | 48 kg / 106 lb | 48 kg / 106 lb |
| Gross weight | 53 kg / 117 lb | 40.8 kg / 90 lb | 40.8 kg / 90 lb | 76.7 kg / 169 lb | 608 kg / 134 lb | 60.8 kg / 134 lb |
| Box dimension, (L x D x H) | 682 x 209 x 430 mm (26.9" x 8.2" x 16.9") | 682 x 209 x 430 mm (26.9" x 8.2" x 16.9") | 682 x 209 x 430 mm (26.9" x 8.2" x 16.9") | 690 x 270 x 405 mm (27.2" x 10.6" x 15.9") | 690 x 270 x 405 mm (27.2" x 10.6" x 15.9") | 690 x 270 x 405 mm (27.2" x 10.6" x 15.9") |
