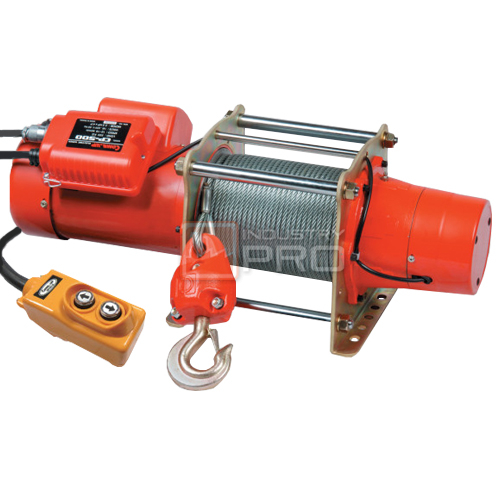

AC WINCH COME UP Electric Winch CP Series

กว้านสลิงไฟฟ้า COME UP รุ่น CP Series

Category กว้าน Tags COME UP, Electric Winch, Hoist & Crane, กว้านสลิงไฟฟ้า, รอกและระบบลำเลียง

กว้านสลิงไฟฟ้า AC WINCH COME UP Electric Winch CP Series

Positive retention of wire rope on to drum
Electromagnetic spring-applied failsafe brake
Heavy duty high efficiency ball bearing on all running surfaces
Planetary gears for maximum mechanical efficiency
Enclosed drum flanges to prevent rope becoming trapped between drum and support steel plates
Quiet running
Emergency stop function switch is available upon request
Low voltage control ass’y is available upon request

SPECIFICATIONS

Specifications	COME UP CP-200	COME UP CP-250	COME UP CP-300	COME UP CP-500	COME UP CP-500T	COME UPCP-750T
Lifting capacity	200 kg at wire rope top layer	250 kg at wire rope top layer	300 kg at wire rope top layer	500 kg at wire rope top layer	500 kg at wire rope top layer	750 kg at wire rope top layer
Lifting speed	10 – 15 m/min	10 – 15 m/min	10 – 15 m/min	10 – 15 m/min	12 – 18 m/min	10 – 15 m/min
Power source	1 phase, 110V or 220-240V	1 phase, 110V or 220-240V	1 phase, 110V or 220-240V	1 phase, 110V or 220-240V	3 phase, 380-440V	3 phase, 380-440V
Motor rating IP44	0.6 kw x 4 poles induction brake motor	0.75 kw x 4 poles induction brake motor	1.1 kw x 4 poles induction brake motor	1.8 kw x 4 poles induction brake motor	1.8 kw x 4 poles induction brake motor	2.2 kw x 4 poles induction brake motor
Gear ratio	43:1	43:1	43:1	48:1	42:1	58:1
Maximum lifting height	29 m	29 m	29 m	58 m	58 m	58 m
Braking methods	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
Wire rope	6 mm x 30 m	6 mm x 30 m	6 mm x 30 m	7 mm x 60 m	7 mm x 60 m	9 mm x 60 m
Drum length	110 mm	110 mm	110 mm	220 mm	220 mm	240 mm
Drum dia.	94 mm	94 mm	94 mm	102 mm	102 mm	114 mm
Drum flange dia.	154 mm	154 mm	154 mm	180 mm	180 mm	240 mm
Mounting bolts pattern	142 mm x 142 mm	142 mm x 142 mm	142 mm x 142 mm	267 mm x 156 mm	267 mm x 156 mm	300 mm x 400 mm
Net weight, kg (standard version)	32 kg	34 kg	38 kg	55 kg	54 kg	135 kg
Gross weight	34 kg	36 kg	40 kg	57 kg	56 kg	165 kg
Body dimension, (L x D x H)	489 x 210 x 241 mm	525 x 210 x 241 mm	548.5 x 210 x 241 mm	720 x 260 x 299 mm	704 x 260 x 299 mm	870 x 424 x 360 mm
Box dimension, (L x D x H)	610 x 286 x 285 mm	630 x 286 x 285 mm	650 x 286 x 285 mm	740 x 280 x 350 mm	740 x 280 x 350 mm	970 x 530 x 520 mm
