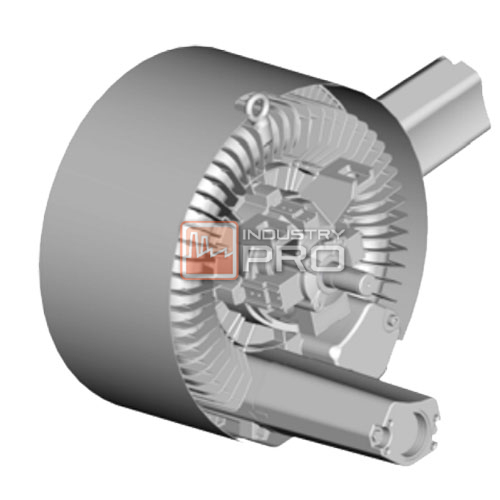

Double Stage Regenerative Blower GREENCO 2RB-1HY99 Series

Category ริงโบลเวอร์

Double Stage Regenerative Blower GREENCO 2RB-1HY99 Series

SPECIFICATIONS GREENCO 2RB 223-1HY99

NO	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Vacuum rellet
	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Items x type
	RPM	KW	m³/h	mbar	mbar	dB(A)	Kg	2BX
1	3000	0.7	85	-210	240	55	9	1x···2110/···2141 (RV-01)
	3600	0.83	102	-260	290	61
	4200	0.95	128	-290	280	64
	5000	1.1	150	-220	230	66

SPECIFICATIONS GREENCO 2RB 423-1HY99

NO	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Vacuum rellet
	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Items x type
	RPM	KW	m³/h	mbar	mbar	dB(A)	Kg	2BX
1	3000	2.2	160	-330	440	66	13.5	1x···2110/···2142 (RV-02)
	3600	2.55	190	-350	420	69
	4200	3	230	-420	400	72
	5000	3.8	260	-380	330	77

SPECIFICATIONS GREENCO 2RB 523-1HY99

NO	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Vacuum rellet
	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Items x type
	RPM	KW	m³/h	mbar	mbar	dB(A)	Kg	2BX
1	3000	3.0	230	-340	410	72	21	1x···2110/···2142 (RV-02)
	3600	3.45	275	-380	360	74
	4200	4.3	320	-340	300	78
	5000	5.0	380	-300	240	83
2	3000	4.0	230	-390	440	72
	3600	4.6	275	-410	480	74
	4200	6.0	320	-440	480	78
	5000	6.9	380	-460	410	83

SPECIFICATIONS GREENCO 2RB 723-1HY99

NO	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Vacuum rellet
	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Items x type
	RPM	KW	m³/h	mbar	mbar	dB(A)	Kg	2BX
1	3000	4.3	320	-360	380	73	29	1x···2110/···2142 (RV-02)
	3600	4.8	380	-350	320	75
	4200	6.3	440	-310	300	78
	5000	6.9	530	-240	200	84
2	3000	5.5	320	-420	500	73
	3600	6.3	380	-440	500	75
	4200	7.5	440	-440	420	78
	5000	8.8	530	-440	350	84
3	3000	7.5	320	-440	570	73
	3600	8.6	380	-460	660	75
	4200	10.0	440	-460	600	78
	5000	12.0	530	-440	410	84

SPECIFICATIONS GREENCO 2RB 743-1HY99

NO	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Vacuum rellet
	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Items x type
	RPM	KW	m³/h	mbar	mbar	dB(A)	Kg	2BX
1	3000	5.5	500	-240	260	74	31	2x···2110/···2145
	3600	6.3	600	-210	200	78
	4200	7.5	700	-140	120	80
	5000	8.8	800	-50	30	84
2	3000	7.5	500	240	320	73
	3600	8.6	600	-270	300	75
	4200	10.0	700	-200	200	78
	5000	12.0	800	-110	80	84

SPECIFICATIONS GREENCO 2RB 823-1HY99

NO	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Vacuum rellet
	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Items x type
	RPM	KW	m³/h	mbar	mbar	dB(A)	Kg	2BX
1	3000	7.5	520	-400	400	74	64	1x···4740/···4840
	3600	8.6	620	-360	330	78
	4200	10.0	730	-240	220	81
	5000	12.0	860	-100	80	84
2	3000	11.0	520	-430	600	74
	3600	12.6	620	-460	600	78
	4200	14.5	730	-480	360	81
	5000	17.6	860	-440	290	84
3	3000	15.0	520	-460	670	74
	3600	17.3	620	-490	750	78
	4200	21.1	730	-480	680	81
	5000	24.0	860	-440	520	84

SPECIFICATIONS GREENCO 2RB 923-1HY99

NO	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Vacuum rellet
	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Items x type
	RPM	KW	m³/h	mbar	mbar	dB(A)	Kg	2BX
1	3000	12.5	1110	-300	270	74	110	2x···750/···860
	3600	14.5	1310	-220	200	84
	4200	17.5	1600	-150	130	87
2	3000	16.5	1110	-410	370	74
	3600	19.0	1310	-340	300	84
	4200	21.0	1600	-270	240	87
3	3000	20.0	1110	-440	500	74
	3600	23.0	1310	-440	430	84
	4200	28.0	1600	-440	340	87
4	3000	25.0	1110	-440	590	74
	3600	29.0	1310	-440	540	84
	4200	35.0	1600	-460	460	87

SPECIFICATIONS GREENCO 2RB 943-1HY99

NO	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Vacuum rellet
	Rated Speed	Rated Power	Maximim Air flow	Maximim vacuum	Maximim pressure	Sound-level	Weight approx	Items x type
	RPM	KW	m³/h	mbar	mbar	dB(A)	Kg	2BX
1	3000	20.0	1940	-220	200	75	118	2x···750/···860
	3600	23.0	230	-160	130	84
	4200	28.0	270	-90	80	87
2	3000	25.0	1940	-300	300	75
	3600	29.0	2300	-280	250	84
	4200	35.0	2700	-200	150	87
